Home > Products > DISPENSING COMPONENTS > SWIVEL > SWIVEL ZYQ75/ZYQ85

SWIVEL ZYQ75/ZYQ85

The HP-ZYQ75/ZYQ85 swivel-axial couplings provide 360° rotation of the hose and is actively used at the gas station with ZYQ75/ZYQ25 automatic nozzle or nozzles of other manufacturers. Its function is to prevent the hose from bending and twisting during the winding (or unwinding) process. It is specially designed for ZYQ75/ZYQ25 series nozzle or nozzles of other manufacturers.

Variations

Edit selections

MODEL: ZYQ75.0

ZYQ75.0

ZYQ75.1

ZYQ85.0

ZYQ85.1

THREAD: NPT

NPT

BSP

BSPT

Select variations and quantity

MODEL: ZYQ75.0

ZYQ75.0

ZYQ75.1

ZYQ85.0

ZYQ85.1

THREAD: NPT

The min. inquiry quantity is 0. Add 0 more to continue.

NPT

BSP

BSPT

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

MATERIAL

Body: Aluminum,stainless (ZYQ75) ; Brass (ZYQ85)
Seals: NBR、FPM

FEATURES AND BENEFITS

Compatible with gasoline, diesel.
Flexible rotation and reduce premature hose wear.
Secure design not repairable or rebuildable for certainty of operation.
Each one is factory assembled and tested.
Maximum Flow rate: 60 L/min.
Maximum working pressure: 3.5bar.
Working temperature: -20℃~ +55℃.

ORDERING SPECIFICATION

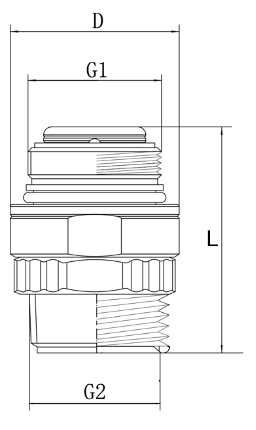

PART NUMBER	DIMENSIONS APPROX		NOZZLE SIZE	HOSE INLET		WEIGHT APPROX
type	D(mm)	L(mm)	G1	G2	type	kg

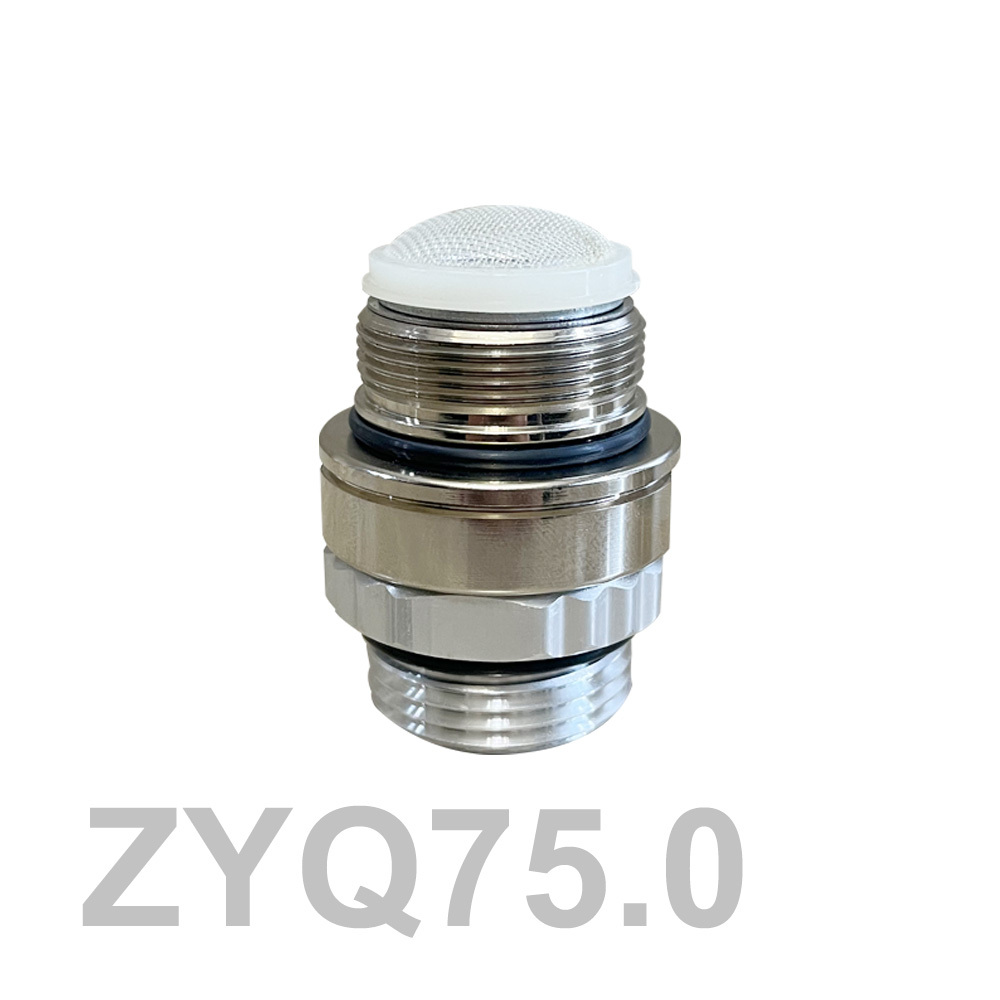

ZYQ75.0	43	57	M34*1.5	1" male	NPT/BSP/BSPT	0.17

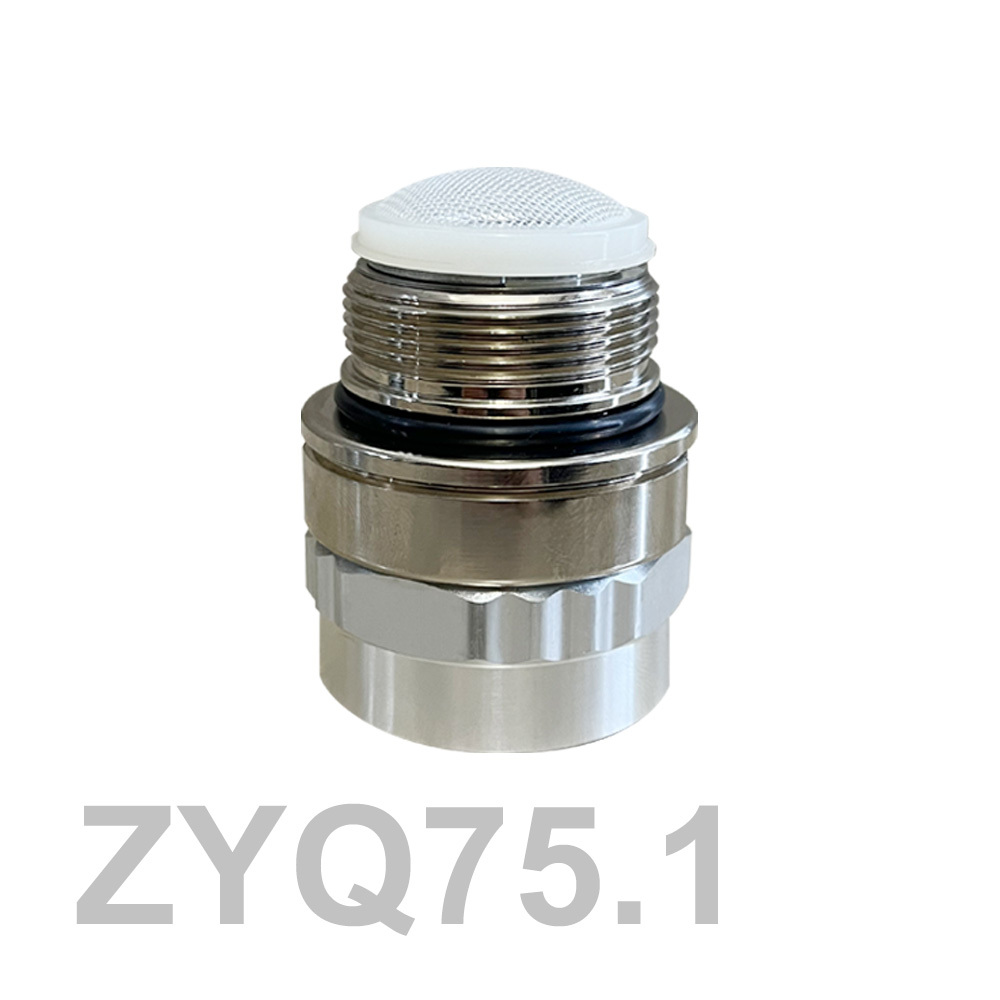

ZYQ75.1	43	53	M34*1.5	1"female		0.18

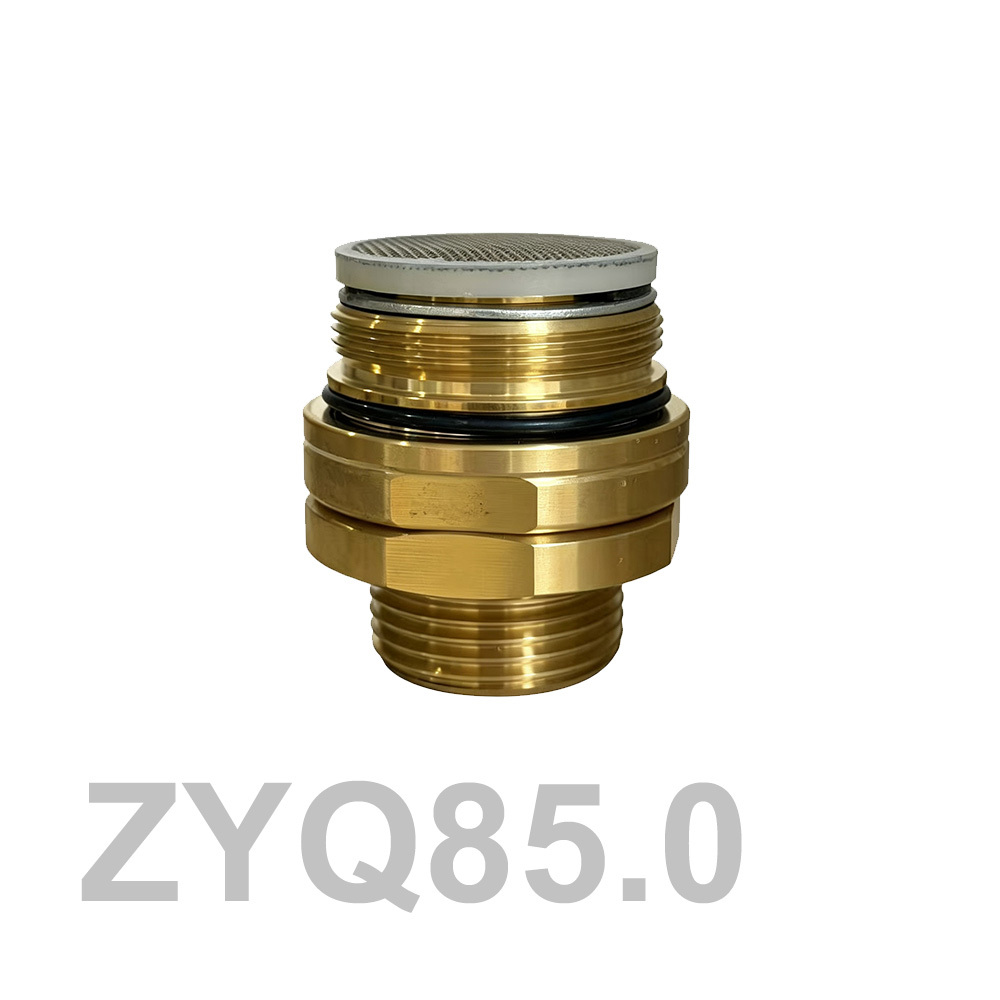

ZYQ85.0	49	53	M42*1.5	1" male		0.33

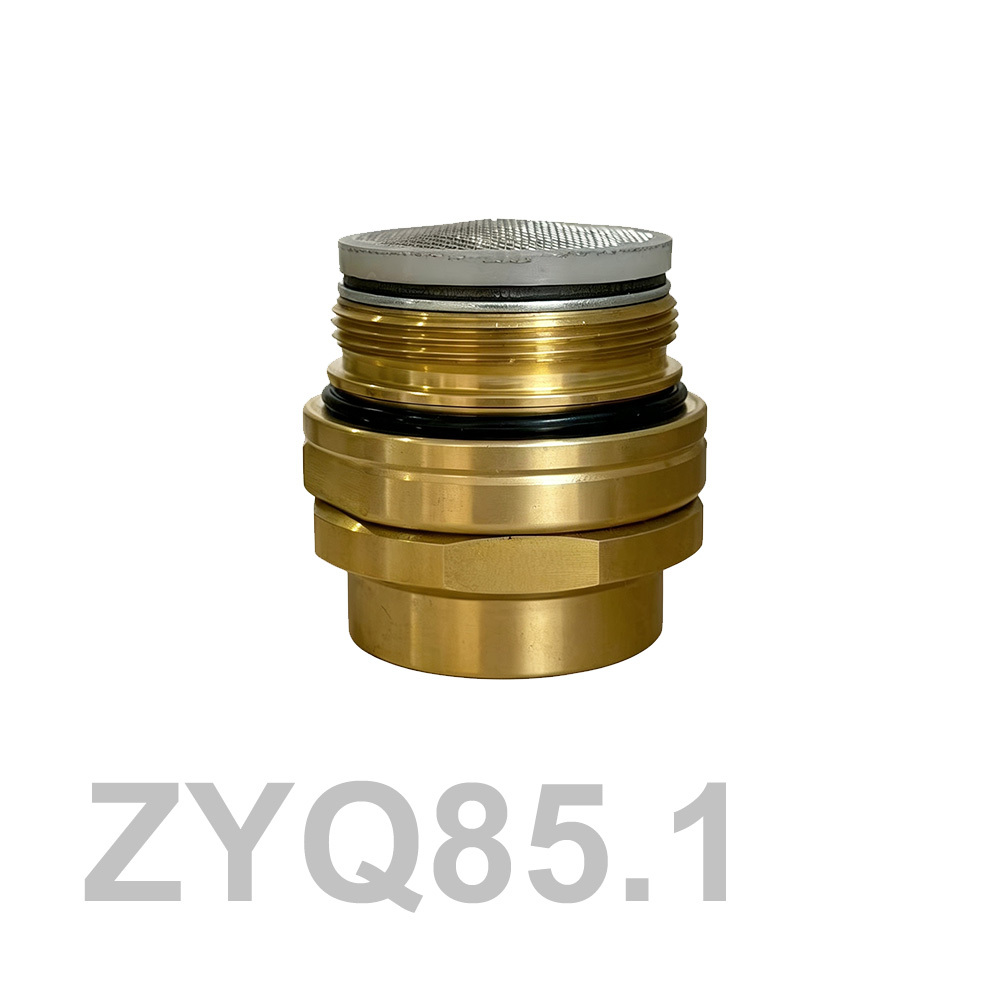

ZYQ85.1	49	48	M42*1.5	1"female		0.35
