FEATURES AND BENEFITS

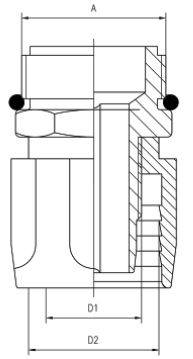

| ITEM NO. | NOMINAL SIZE | D1 | D2 | THREAD SIZE （A） | THREAD SCREW | HOSE SIZE I.D* O.D. | FIXED WEIGHT | |
| inch | mm | mm | inch | mm | kg | |||
 |

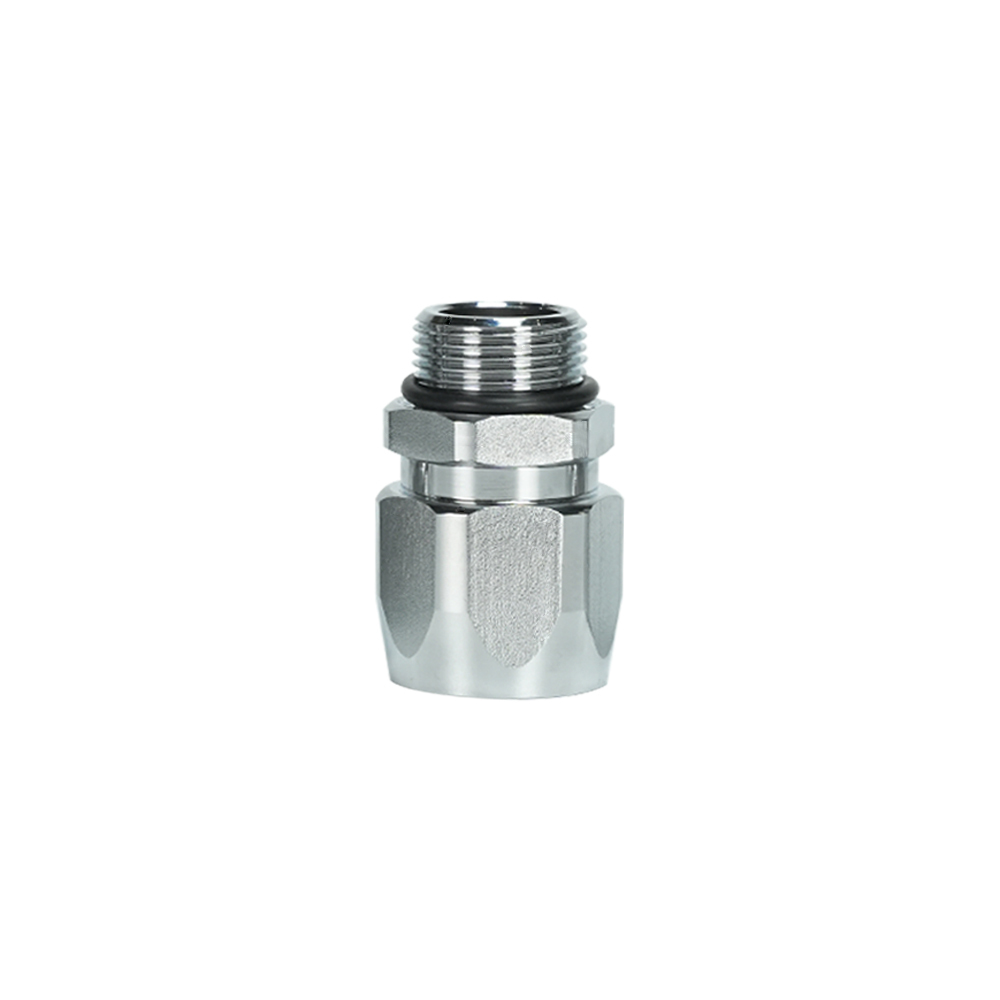

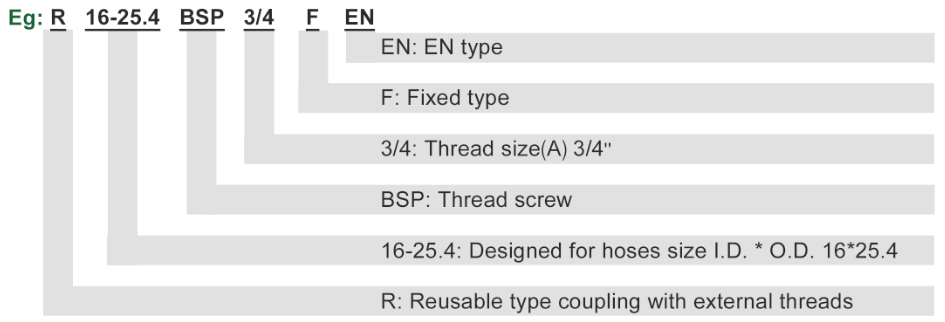

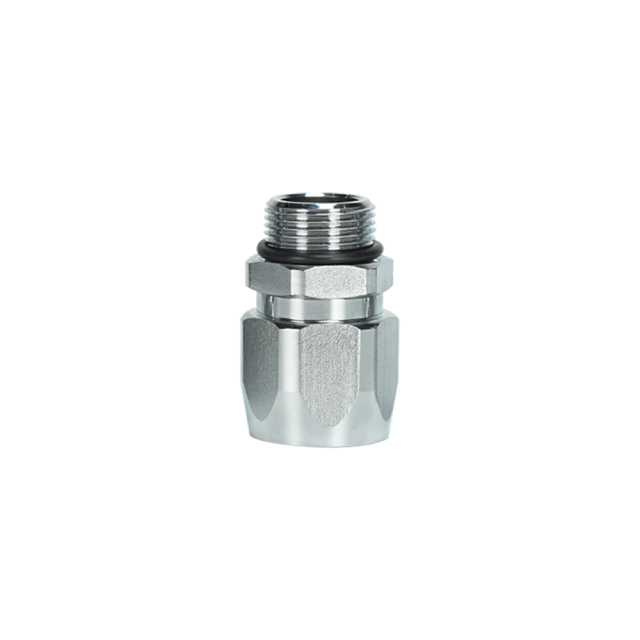

R16-25.4-BSP3/4-F-EN | 5/8" | M21*1.5 | 25.4 | 3/4" | BSP (O- ring is optional) |
16*25.4 | 0.16 |
| R16-25.4-BSP1-F-EN | 5/8" | M21*1.5 | 25.4 | 1" | 16*25.4 | 0.18 | ||
| R16-26-BSP3/4-F-EN | 5/8" | M21*1.5 | 26 | 3/4" | 16*26 | 0.16 | ||
| R16-26-BSP1-F-EN | 5/8" | M21*1.5 | 26 | 1" | 16*26 | 0.18 | ||
| R16-27-BSP3/4-F-EN | 5/8" | M21*1.5 | 26.8 | 3/4" | 16*27 | 0.19 | ||
| R16-27-BSP1-F-EN | 5/8" | M21*1.5 | 26.8 | 1" | 16*27 | 0.20 | ||
| R19-28.5-BSP3/4-F-EN | 3/4" | M24*1.5 | 28.3 | 3/4" | 19*28.5 | 0.21 | ||
| R19-28.5-BSP1-F-EN | 3/4" | M24*1.5 | 28.3 | 1" | 19*28.5 | 0.21 | ||
| R19-29-BSP3/4-F-EN | 3/4" | M24*1.5 | 28.8 | 3/4" | 19*29 | 0.21 | ||
| R19-29-BSP1-F-EN | 3/4" | M24*1.5 | 28.8 | 1" | 19*29 | 0.21 | ||
| R19-30-BSP3/4-F-EN | 3/4" | M24*1.5 | 29.6 | 3/4" | 19*30 | 0.21 | ||
| R19-30-BSP1-F-EN | 3/4" | M24*1.5 | 29.6 | 1" | 19*30 | 0.21 | ||
| R21-31-BSP3/4-F-EN | 7/8" | M26*1.5 | 30.8 | 3/4" | 21*31 | 0.23 | ||
| R21-31-BSP1-F-EN | 7/8" | M26*1.5 | 30.8 | 1" | 21*31 | 0.23 | ||
| R21-32-BSP3/4-F-EN | 7/8" | M26*1.5 | 31.8 | 3/4" | 21*32 | 0.23 | ||
| R21-32-BSP1-F-EN | 7/8" | M26*1.5 | 31.8 | 1" | 21*32 | 0.23 | ||
| R25-35-BSP1-F-EN | 1" | M28*1.5 | 35 | 1" | 25*35 | 0.23 | ||
| R25-36-BSP1-F-EN | 1" | M28*1.5 | 36 | 1" | 25*36 | 0.23 | ||
| R25-37-BSP1-F-EN | 1" | M28*1.5 | 37 | 1" | 25*37 | 0.23 |

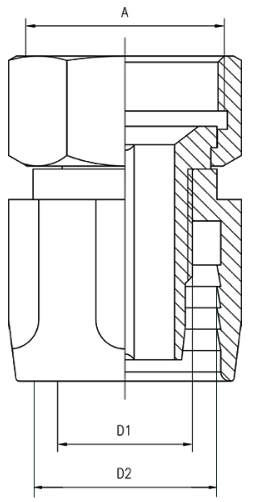

| ITEM NO. | NOMINAL SIZE | D1 | D2 | THREAD SIZE （A） | THREAD SCREW | HOSE SIZE I.D* O.D. | FIXED WEIGHT | |
| inch | mm | mm | inch | mm | kg | |||
 |

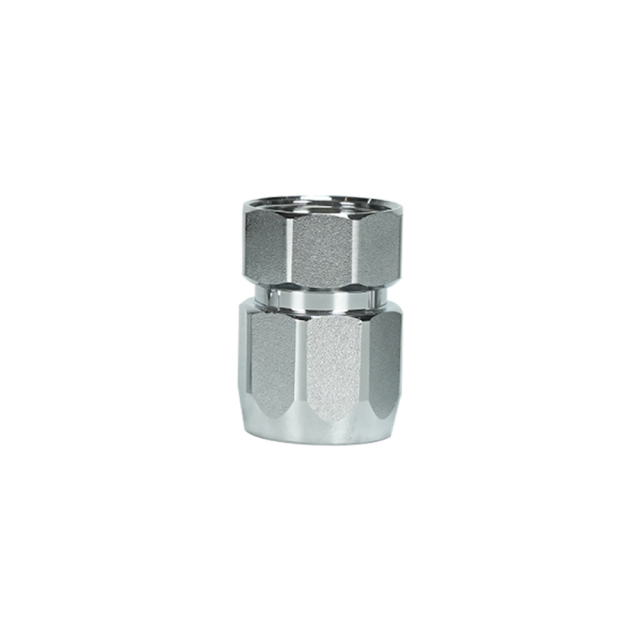

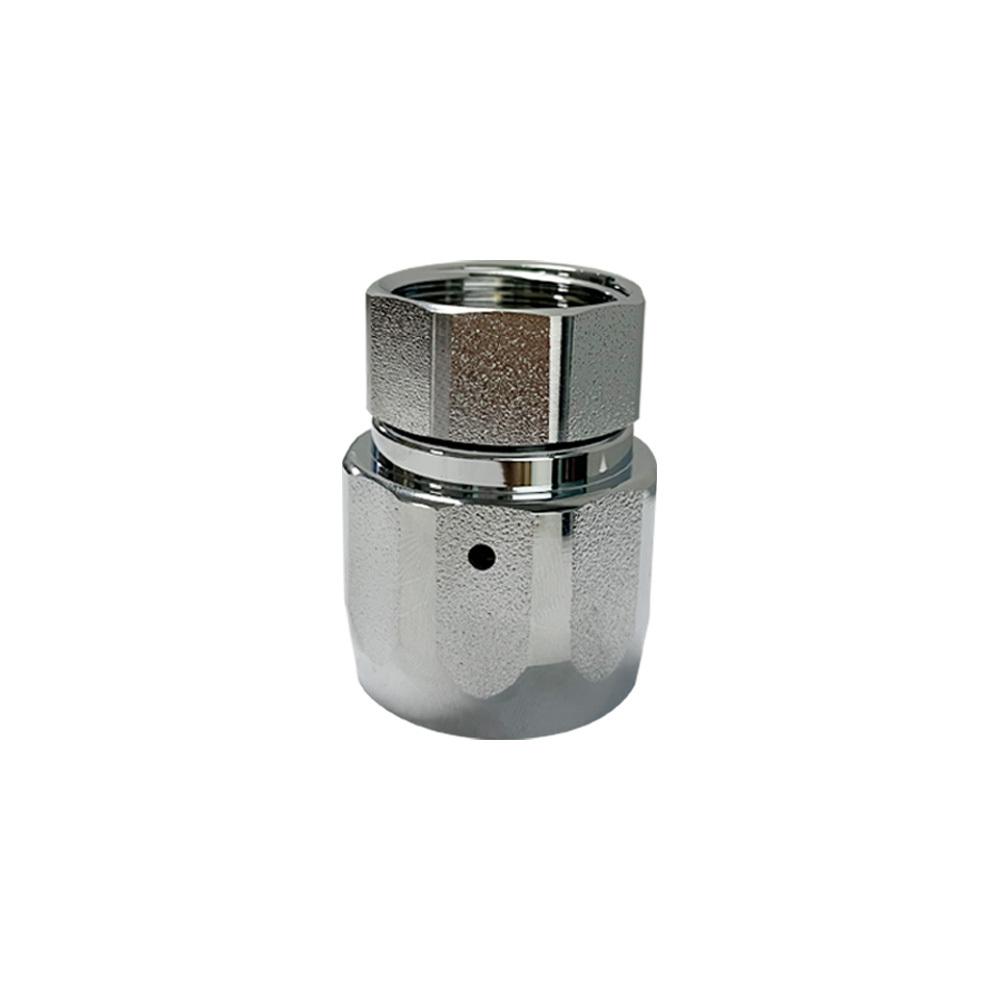

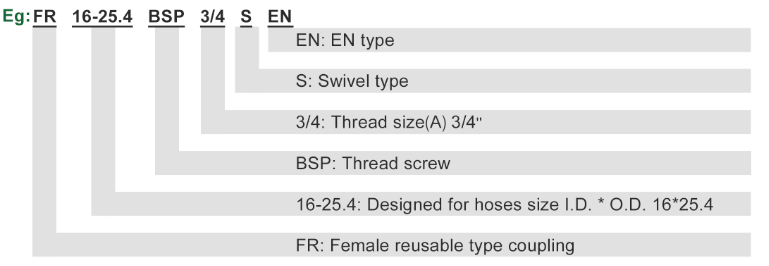

FR16-25.4-BSP3/4-S-EN | 5/8" | M21*1.5 | 25.4 | 3/4" | BSP (Rectangular ring is optional) |
16*25.4 | 0.16 |
| FR16-25.4-BSP1-S-EN | 5/8" | M21*1.5 | 25.4 | 1" | 16*25.4 | 0.18 | ||
| FR16-26-BSP3/4-S-EN | 5/8" | M21*1.5 | 26 | 3/4" | 16*26 | 0.16 | ||
| FR16-26-BSP1-S-EN | 5/8" | M21*1.5 | 26 | 1" | 16*26 | 0.18 | ||
| FR16-27-BSP3/4-S-EN | 5/8" | M21*1.5 | 26.8 | 3/4" | 16*27 | 0.19 | ||
| FR16-27-BSP1-S-EN | 5/8" | M21*1.5 | 26.8 | 1" | 16*27 | 0.20 | ||
| FR19-28.5-BSP1-S-EN | 3/4" | M24*1.5 | 28.3 | 1" | 19*28.5 | 0.21 | ||
| FR19-29-BSP1-S-EN | 3/4" | M24*1.5 | 28.8 | 1" | 19*29 | 0.21 | ||
| FR19-30-BSP1-S-EN | 3/4" | M24*1.5 | 29.6 | 1" | 19*30 | 0.21 | ||
| FR21-31-BSP1-S-EN | 7/8" | M26*1.5 | 30.8 | 1" | 21*31 | 0.23 | ||
| FR21-32-BSP1-S-EN | 7/8" | M26*1.5 | 31.8 | 1" | 21*32 | 0.23 | ||
| FR25-35-BSP1-S-EN | 1" | M28*1.5 | 35 | 1" | 25*35 | 0.23 | ||
| FR25-36-BSP1-S-EN | 1" | M28*1.5 | 36 | 1" | 25*36 | 0.23 | ||
| FR25-37-BSP1-S-EN | 1" | M28*1.5 | 37 | 1" | 25*37 | 0.23 |
