REUSABLE COUPLING STANDARD TYPE

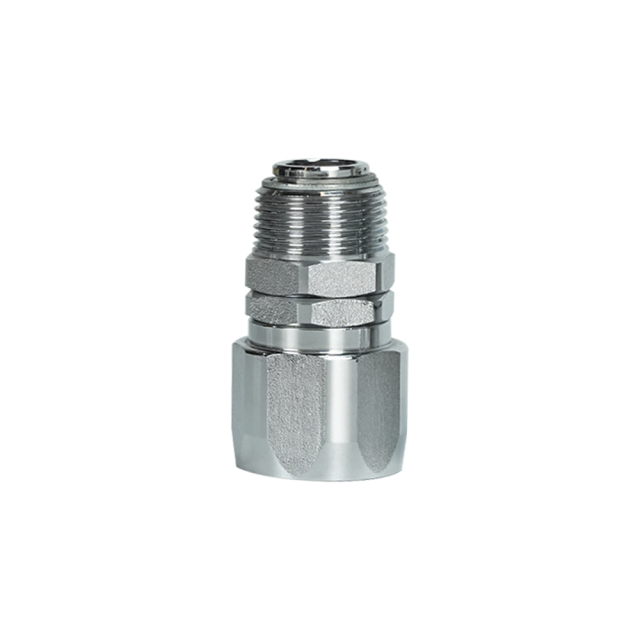

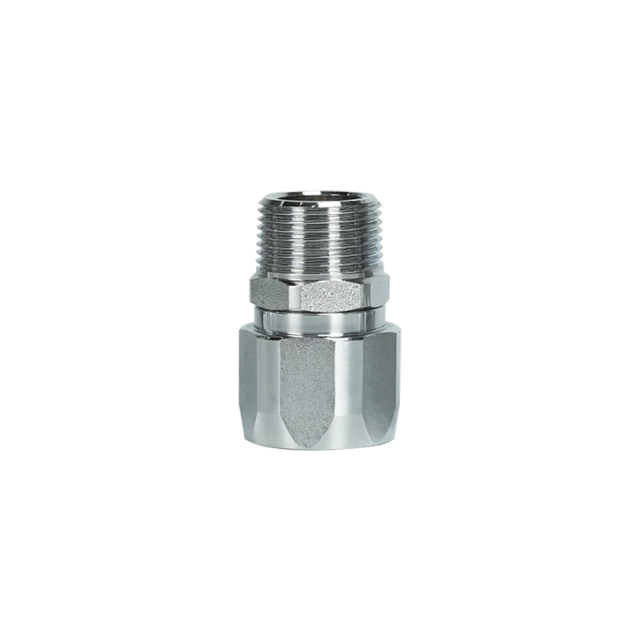

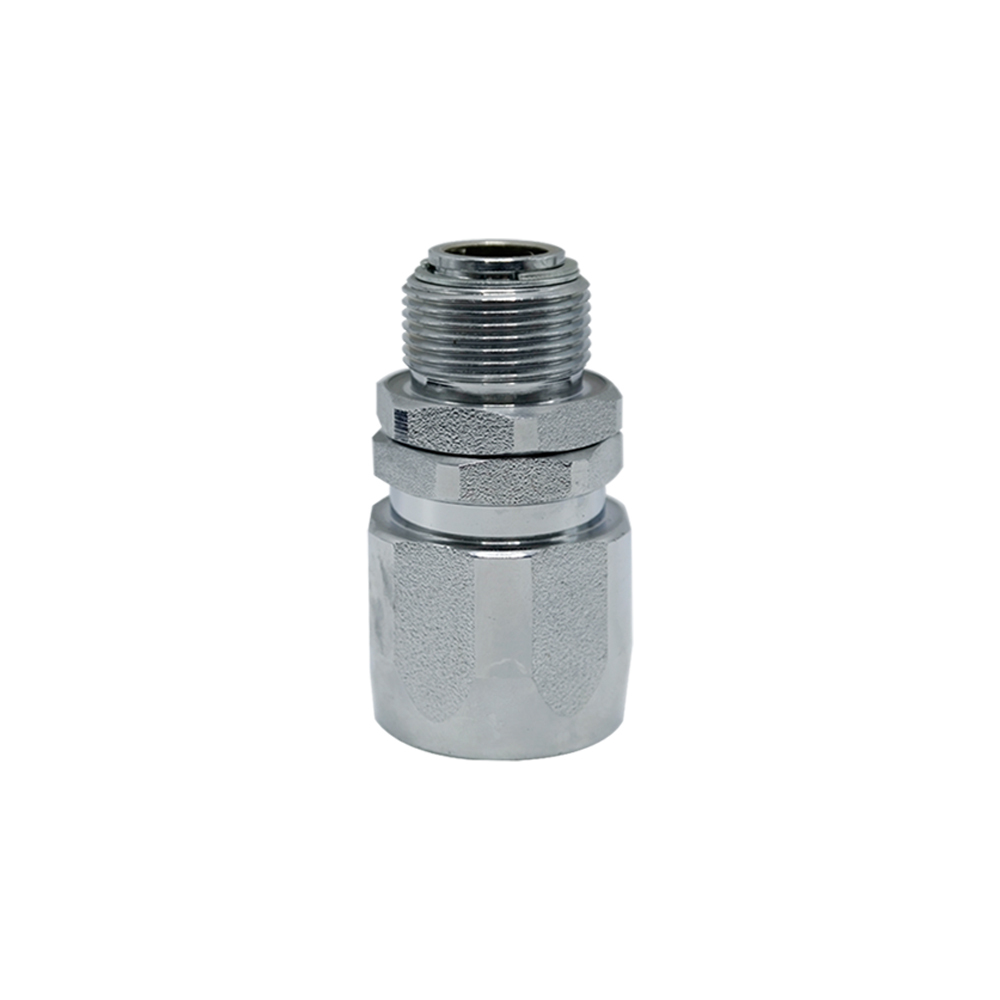

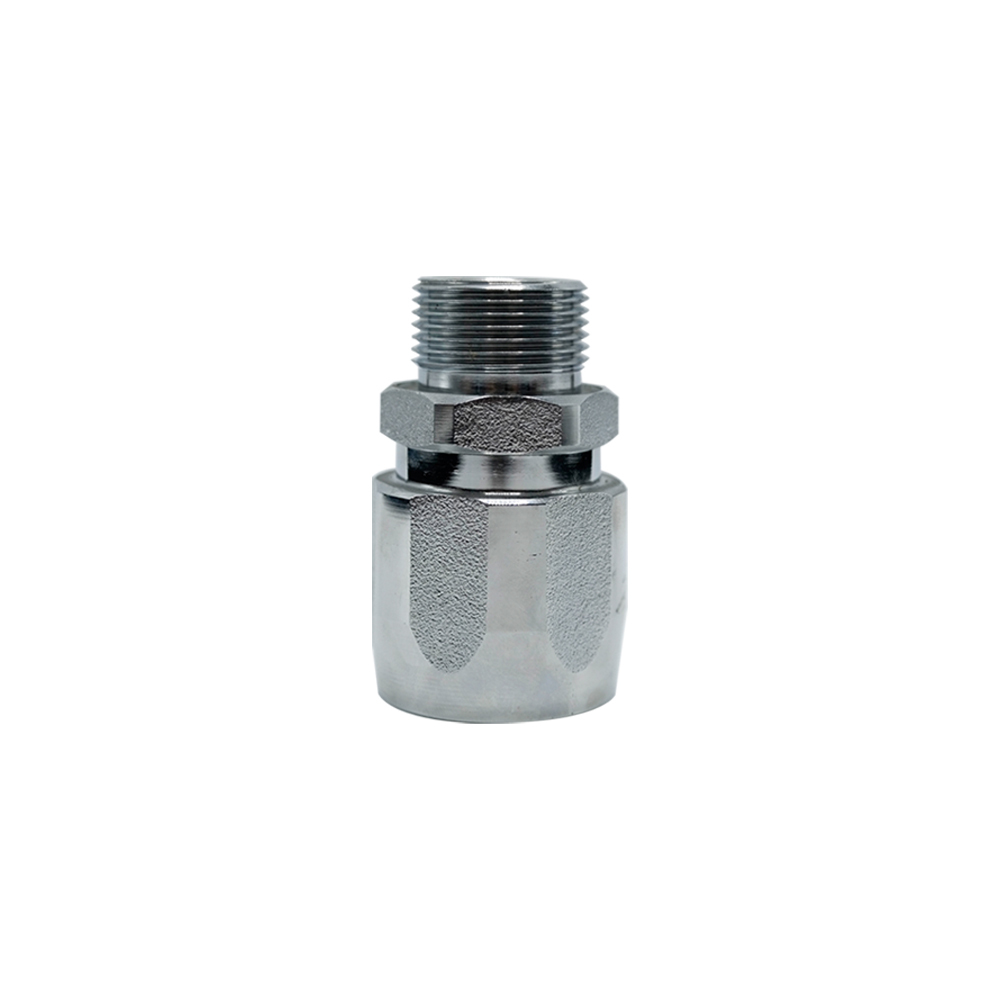

Hopetrol Standard Reusable Couplings are specially engineered for connection between fuel hoses and fuel nozzles, or between hoses and other related equipment. Two configurations are available: fixed type and swivel type. The swivel reusable coupling features 360° free rotation; its full-circle swivel design eases hose alignment between the nozzle and filling hose, effectively lowering operator fatigue during refueling operations.
Variations
Edit selections
CONNECTION MODE: MALE REUSABLE
MALE REUSABLE
HOSE SIZE: 16*27
16*27
19*28.5
25*35
25*37
THREAD: NPT
NPT
BSP
BSPT
THREAD SIZE: 3/4"
3/4"
1"
STRUCTURE: FIXED
FIXED
SWIVEL
VISION: STANDARD
STANDARD
Select variations and quantity
CONNECTION MODE: MALE REUSABLE
MALE REUSABLE
HOSE SIZE: 16*27
16*27
19*28.5
25*35
25*37
THREAD: NPT
NPT
BSP
BSPT
THREAD SIZE: 3/4"
3/4"
1"
STRUCTURE: FIXED
FIXED
SWIVEL
VISION: STANDARD
The min. inquiry quantity is 0. Add 0 more to continue.
STANDARD
-
Subtotal
-
GET A QUOTE
GET A QUOTE
Add to Quote List View Quote List
Download
View all downloads
  • STANDARD TYPE,MY SHOP,STANDARD TYPE
  • REUSABLE COUPLING STANDARD TYPE,Hopetrol,STANDARD TYPE

MATERIAL
  • Mandrel: Brass & Chrome plated
  • Ferrule: Brass & Chrome plated
  • Swivel type nut: Brass & Chrome plated
  • Seal: NBR/FPM

FEATURES AND BENEFITS

  • Reliably connect fuel hoses to nozzles, fuel dispensers and pipe fittings for transmission of fuel.
  • Fixed couplings maintain fixed positioning; swivel couplings enable 360° free rotation to prevent hose twisting and tangling, improving refueling flexibility.
  • Standard sizes are in regular stock; customized solutions on dimension, thread and material are available to meet special pipeline installation requirements.

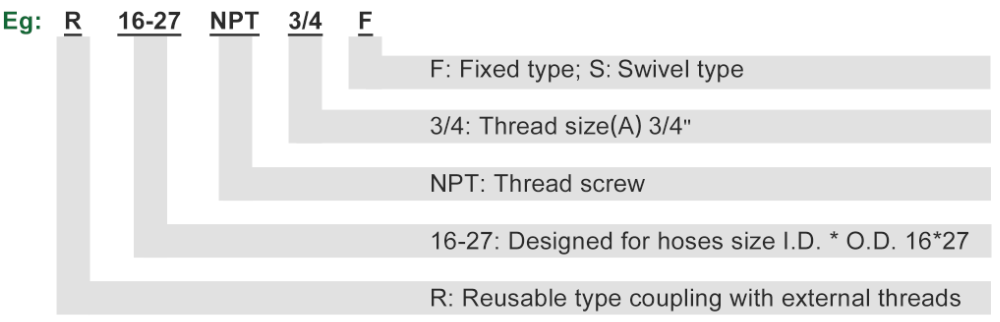

 ORDERING SPECIFICATION

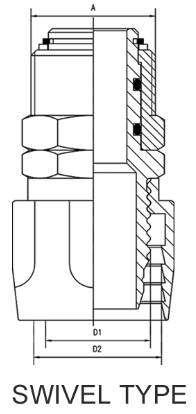

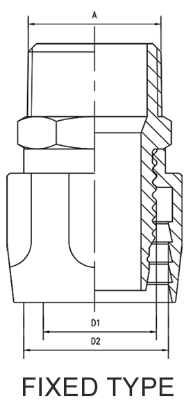

ITEM NO. NOMINAL SIZE D1 D2 THREAD SIZE  （A） THREAD SCREW HOSE SIZE I.D* O.D. SWIVEL WEIGHT FIXED WEIGHT
inch mm mm inch mm kg kg
        R16-27 5/8" 21.3 27 3/4" NPT/BSP/BSPT  (O-ring is optional) 16*27 0.2 0.18
R19-28.5 3/4" 24 28.5 3/4" 19*28.5 0.27 0.21
R25-35 1" 30.8 35 1" 25*35 0.32 0.26
R25-37 1" 30.8 36.5 1" 25*37 0.34 0.28
