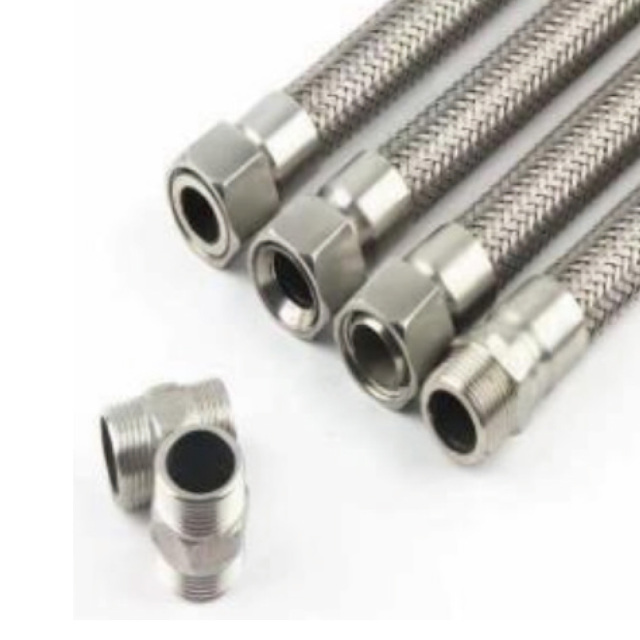

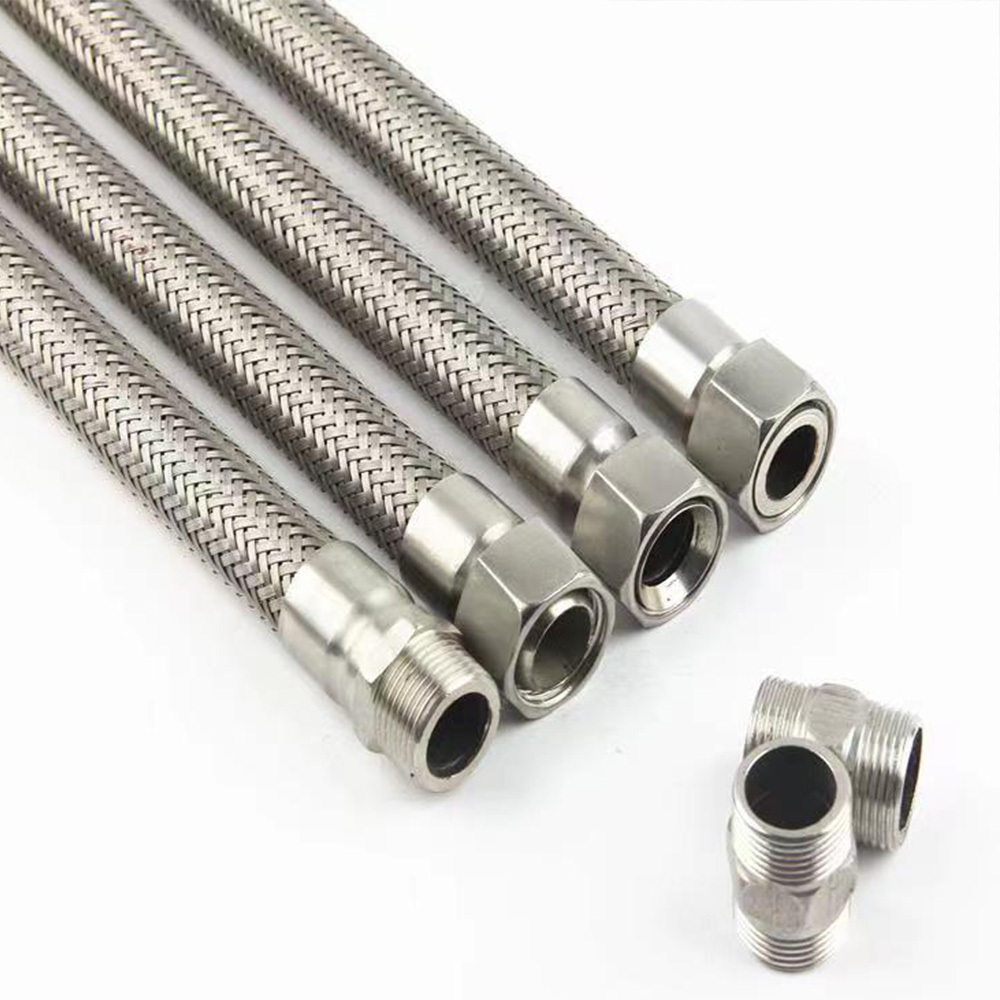

STAINLESS STEEL FLEXIBLE CONNECTOR

Stainless Steel Flexible Connectors provide flexibility in the installation and operation of fuel piping systems. Flexible Connectors can be used as a convenient means of connecting piping to pumps and dispensers, and throughout the piping systems where connections and changes of direction are necessary.

Variations

Edit selections

Hose Diameter: 3/4"

3/4"

1-1/2"

End Fitting Options: Male swivel end&Male fixed end

Male swivel end&Male fixed end

Male fixed end&Male fixed end

Thread: NPT

NPT

BSP

BSPT

Overall length:: 12"（304.8mm）

12"（304.8mm）

14"（355.6mm）

18"（457.2mm）

24"（609.6mm）

30"（762.0mm）

Select variations and quantity

Hose Diameter: 3/4"

3/4"

1-1/2"

End Fitting Options: Male swivel end&Male fixed end

Male swivel end&Male fixed end

Male fixed end&Male fixed end

Thread: NPT

NPT

BSP

BSPT

Overall length:: 12"（304.8mm）

The min. inquiry quantity is 0. Add 0 more to continue.

12"（304.8mm）

14"（355.6mm）

18"（457.2mm）

24"（609.6mm）

30"（762.0mm）

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

Material

Flexible connector: Stainless steel
Seal: PTFE

FEATURES & BENEFITS

Maximum working pressure: 150 Psi(10 bar)
Service temperature range: -55°C to 65°C
Minimum burst pressure: 750 PSI (52 bar)
Custom lengths are available
Threads screw can be matched according your needs

ORDERING SPECIFICATIONS

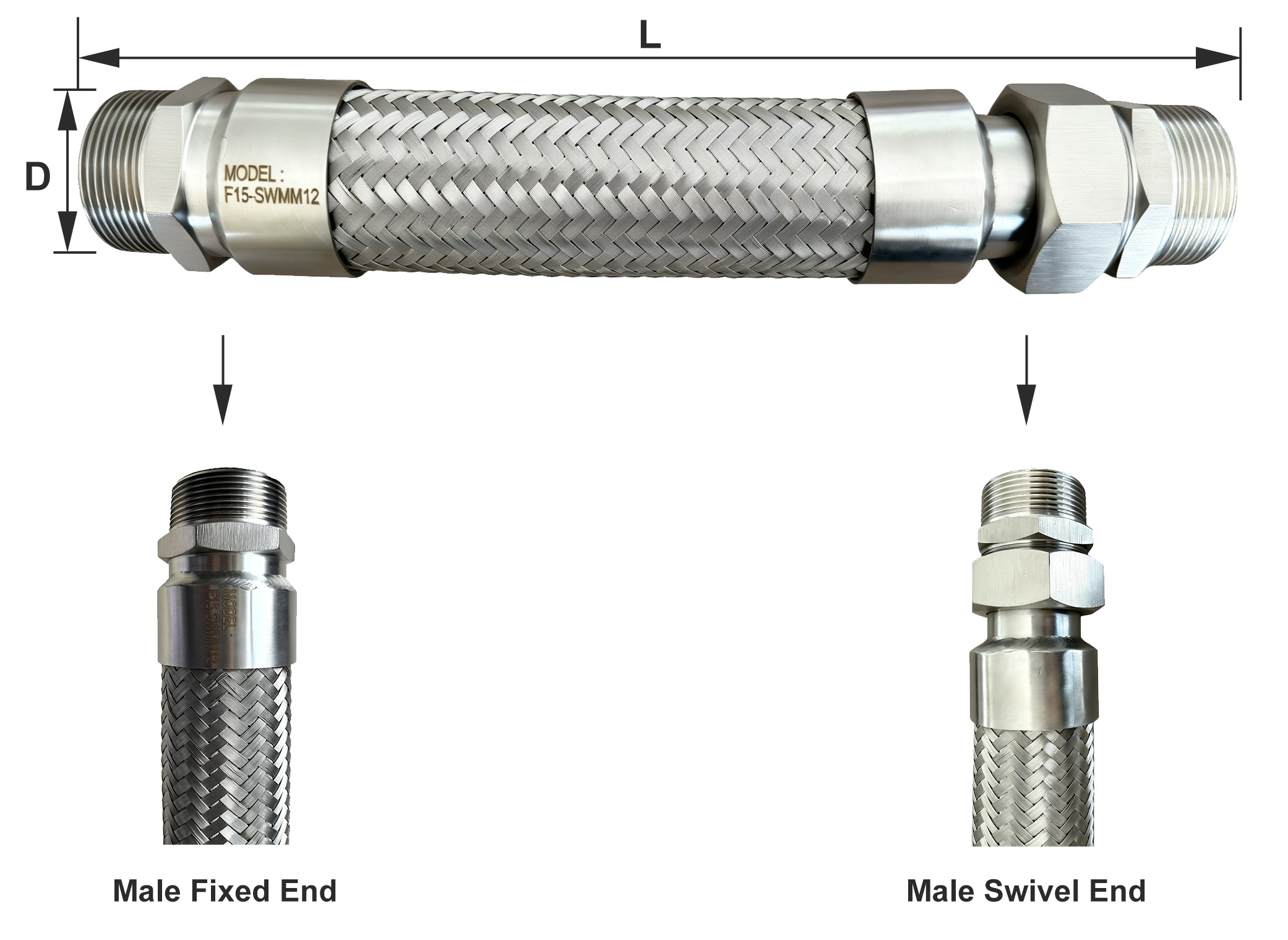

MALE SWIVEL END & MALE FIXED END	Part No.	Hose Diameter（D）	End Fitting Options	Overall length（L）
	F075-SWMM12	075=3/4"	External (one side is swivel,another side is Fixed) NPT/BSP/BSPT	12"（304.8mm）
	F075-SWMM14	075=3/4"	External (one side is swivel,another side is Fixed) NPT/BSP/BSPT	14"（355.6mm）
	F075-SWMM18	075=3/4"	External (one side is swivel,another side is Fixed) NPT/BSP/BSPT	18"（457.2mm）
	F075-SWMM24	075=3/4"	External (one side is swivel,another side is Fixed) NPT/BSP/BSPT	24"（609.6mm）
	F10--SWMM12	10=1"	External (one side is swivel,another side is Fixed) NPT/BSP/BSPT	12"（304.8mm）
	F10--SWMM14	10=1"	External (one side is swivel,another side is Fixed) NPT/BSP/BSPT	14"（355.6mm）
	F10--SWMM18	10=1"	External (one side is swivel,another side is Fixed) NPT/BSP/BSPT	18"（457.2mm）
	F10--SWMM24	10=1"	External (one side is swivel,another side is Fixed) NPT/BSP/BSPT	24"（609.6mm）
	F15--SWMM12	15=1½"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	12"（304.8mm）
	F15--SWMM14	15=1½"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	14"（355.6mm）
	F15--SWMM18	15=1½"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	18"（457.2mm）
	F15--SWMM24	15=1½"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	24"（609.6mm）
	F20--SWMM12	20=2"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	12"（304.8mm）
	F20--SWMM14	20=2"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	14"（355.6mm）
	F20--SWMM18	20=2"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	18"（457.2mm）
	F20--SWMM24	20=2"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	24"（609.6mm）
	F30--SWMM12	30=3"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	12"（304.8mm）
	F30--SWMM14	30=3"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	14"（355.6mm）
	F30--SWMM18	30=3"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	18"（457.2mm）
	F30--SWMM24	30=3"	External(one side is swivel,another side is Fixed) NPT/BSP/BSPT	24"（609.6mm）

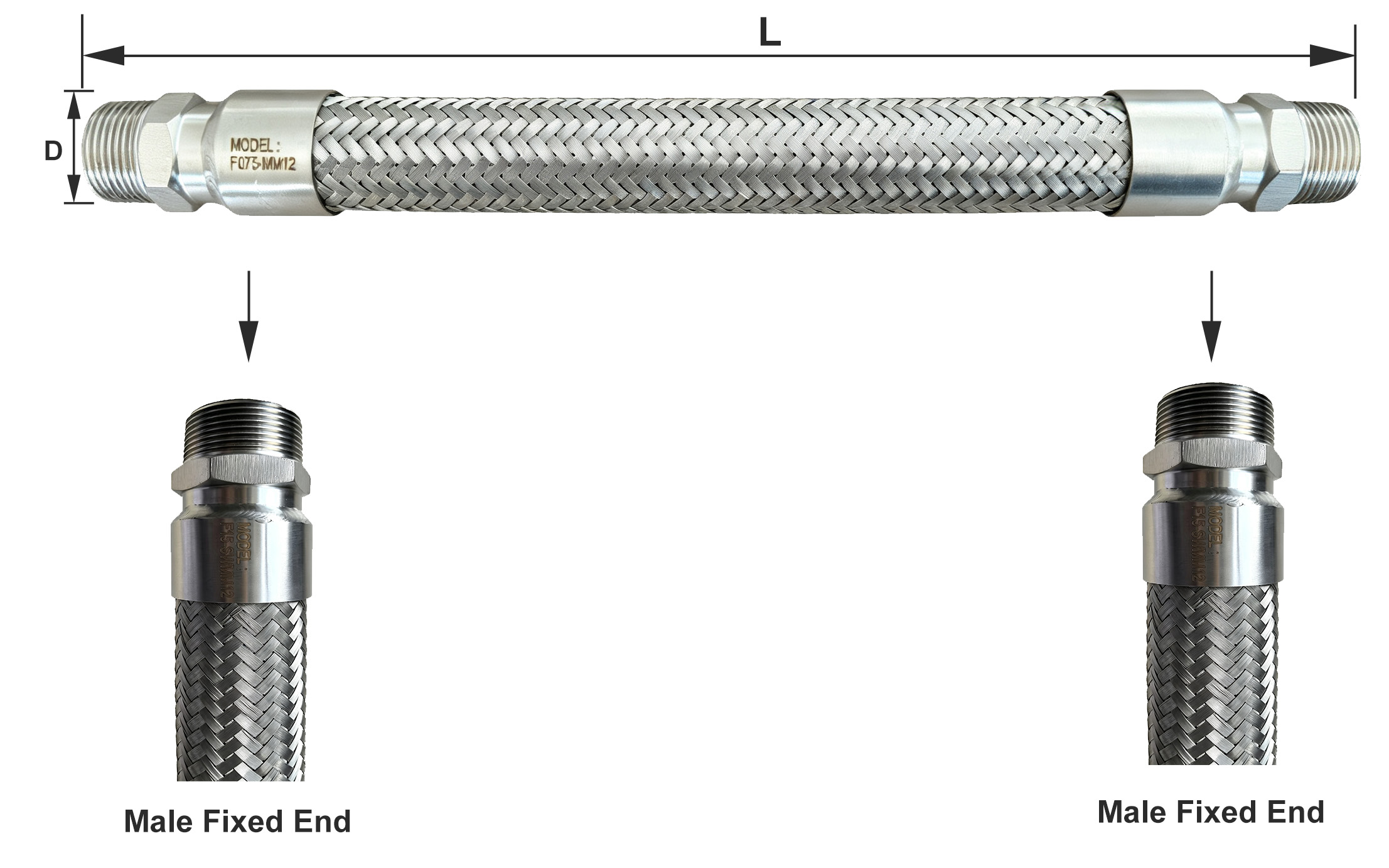

MALE FIXED END & MALE FIXED END	Part No.	Hose Diameter（D）	End Fitting Options	Overall length（L）
	F075-MM12	075=3/4"	External (two sides are Fixed)NPT/BSP/BSPT	12"（304.8mm）
	F075-MM14	075=3/4"	External (two sides are Fixed)NPT/BSP/BSPT	14"（355.6mm）
	F075-MM18	075=3/4"	External (two sides are Fixed)NPT/BSP/BSPT	18"（457.2mm）
	F075-MM24	075=3/4"	External (two sides are Fixed)NPT/BSP/BSPT	24"（609.6mm）
	F075-MM30	075=3/4"	External (two sides are Fixed)NPT/BSP/BSPT	30"（762.0mm）
	F10-MM12	10=1"	External(two sides are Fixed) NPT/BSP/BSPT	12"（304.8mm）
	F10-MM14	10=1"	External(two sides are Fixed) NPT/BSP/BSPT	14"（355.6mm）
	F10-MM18	10=1"	External(two sides are Fixed) NPT/BSP/BSPT	18"（457.2mm）
	F10-MM24	10=1"	External(two sides are Fixed) NPT/BSP/BSPT	24"（609.6mm）
	F10-MM30	10=1"	External(two sides are Fixed) NPT/BSP/BSPT	30"（762.0mm）
	F15-MM12	15=1½"	External(two sides are Fixed)NPT/BSP/BSPT	12"（304.8mm）
	F15-MM14	15=1½"	External(two sides are Fixed)NPT/BSP/BSPT	14"（355.6mm）
	F15-MM18	15=1½"	External(two sides are Fixed)NPT/BSP/BSPT	18"（457.2mm）
	F15-MM24	15=1½"	External(two sides are Fixed)NPT/BSP/BSPT	24"（609.6mm）
	F15-MM30	15=1½"	External(two sides are Fixed)NPT/BSP/BSPT	30"（762.0mm）
	F20-MM12	20=2"	External(two sides are Fixed)NPT/BSP/BSPT	12"（304.8mm）
	F20-MM14	20=2"	External(two sides are Fixed)NPT/BSP/BSPT	14"（355.6mm）
	F20-MM18	20=2"	External(two sides are Fixed)NPT/BSP/BSPT	18"（457.2mm）
	F20-MM24	20=2"	External(two sides are Fixed)NPT/BSP/BSPT	24"（609.6mm）
	F20-MM30	20=2"	External(two sides are Fixed)NPT/BSP/BSPT	30"（762.0mm）
	F30-MM12	30=3"	External(two sides are Fixed)NPT/BSP/BSPT	12"（304.8mm）
	F30-MM14	30=3"	External(two sides are Fixed)NPT/BSP/BSPT	14"（355.6mm）
	F30-MM18	30=3"	External(two sides are Fixed)NPT/BSP/BSPT	18"（457.2mm）
	F30-MM24	30=3"	External(two sides are Fixed)NPT/BSP/BSPT	24"（609.6mm）
	F30-MM30	30=3"	External(two sides are Fixed)NPT/BSP/BSPT	30"（762.0mm）
