Description

FEATURES AND BENEFITS

Impermeable layer is made from pure EVOH without any modification to achieve the best separation effect.This impermeable layer can be used in all kinds of fuel oil,ethanol mixture and additives.
Reasonable five-layer structure design makes the pipeline to the best safe performance.
The resistance of the conductive layer is less than 10⁵Q.
The pipeline has extremely high safety performance.The bursting pressure exceeds 40 times of atmospheric pressure, ten times of working pressure.
Pipeline resistance to a variety of chemicals, long service life.
Working temperature is between-40℃ to 50℃ .
The pipeline has excellent corrosion resistance,especially in coastal areas, high salinity areas.
Light weight, convenient transportation, easy to install.

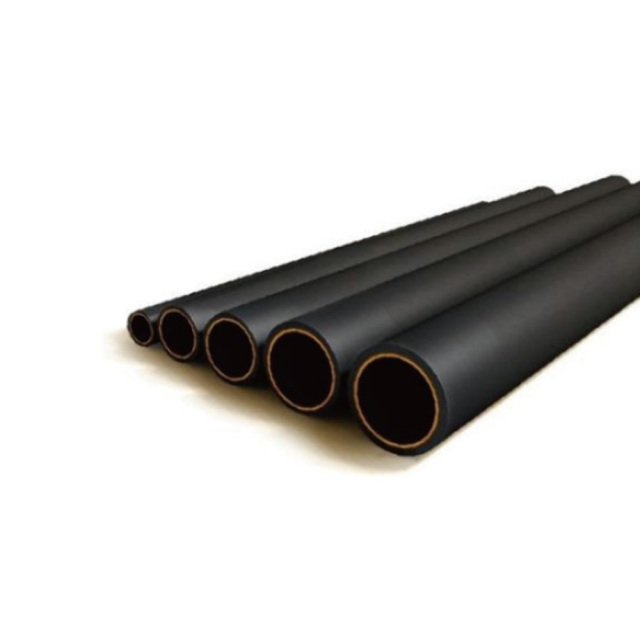

Size	PRODUCTS DESCRIPTION	COMMENT
110mm	4"pipe 125mm,primary pipe conductive	5.8m length
90mm	3"pipe 90mm,primary pipe conductive	5.8m length

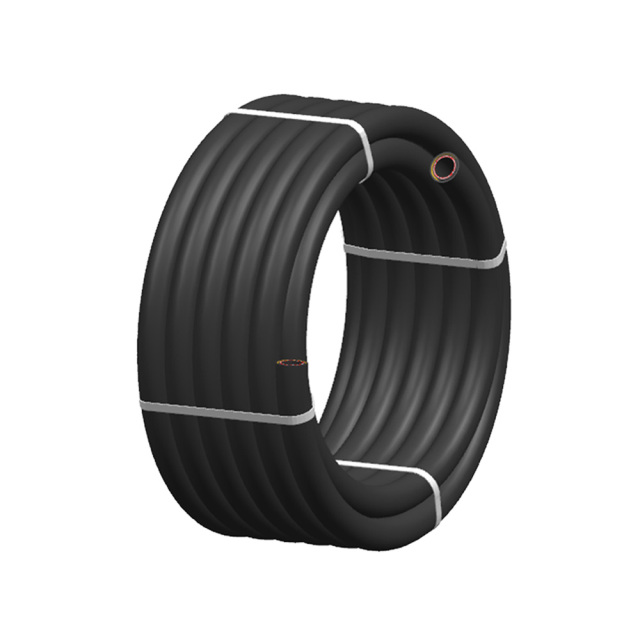

63mm	2"pipe 63mm,primary pipe conductive	100m length
54mm	1.5"pipe 54mm,primary pipe conductive	100m length

SINGLE WALL FITTING AND PARTS
Allwelding fittings are welded by electric fusion welding,safe and reliable.
There is no spark or flame in the welding process.
With special design on the structure of welding fittings,it can ensure no permeation in all piping system.
Conductive plug-in ensures the continuity of piping system,makes it to be a continuous static conductive pipeline system.

Reference picture	Products Description	size
	4"Primary welding socket	110mm
	3"Primary welding socket	90mm
	2"Primary welding socket	63mm
	4"Primary 90°/45 elbow fitting	110mm
	3" Primary 90%/45 elbow fitting	90mm
	4"Welding termination fitting with flange and conductive plug in	110mm
	3" Welding termination fitting with flange and conductive plug in	90mm
	2" Welding termination fitting with flange and conductive plug in	63mm
	2" (pipe)*11/2" NPT/BSPT/BSP female or male threaded termination fitting	63mm
	2"(pipe)*2" NPT/BSPT/BSP female or male threaded termination fitting	63mm
	1 1/2"(pipe)*1 1/2" NPT/BSPT/BSP female threaded termination fitting	54mm
	Switched Copper Coupling 90*3" NPT/BSPT/BSP	90mm
	Switched Copper Coupling 63*2" NPT/BSPT/BSP	63mm
	Switched Copper Coupling 63*11/2" NPT/BSPT/BSP	63mm
	Switched Copper Coupling 54*11/2" NPT/BSPT/BSP	54mm

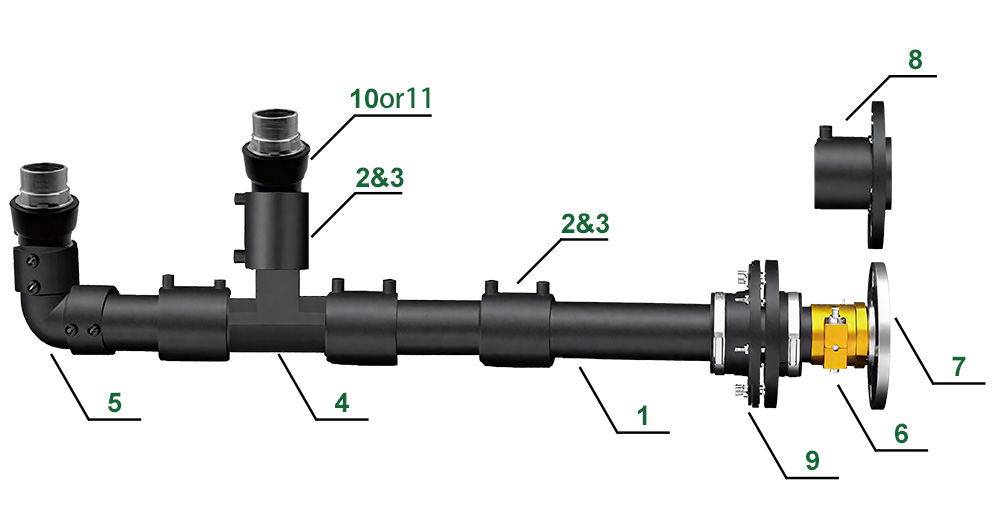

63 or 54mm Fuel Delivery Pipeline (Conductive)

No.	PRODUCTS DESCRIPTION
1	2"Primary pipe;OD.63mm 100m/roll or 50m/roll
2	2"Primary welding socket
3	2"Conductive Plug-in
4	2"Single wallPlain Tee Fitting
5	2"Single wallwelding Elbow
6	Switched Copper Coupling 63*2"NPT/BSPT/BSP
7	Separate threaded DIN flange 63mm,stee
8	2"welding termination fitting with flange
9	2"Entry Seal,for O.D.63mm pipeline
10	2"(pipe)*1 1/2"NPT/BSPT/BSP male threaded termination fitting
10	2"(pipe)*2"NPT/BSPT/BSP male threaded termination fitting
11	2"p(pe)*1 1/2"NPT/BSPT/BSP male threaded termination fitting
11	2"(pipe)*2"NPT/BSPT/BSP female threaded termination fitting

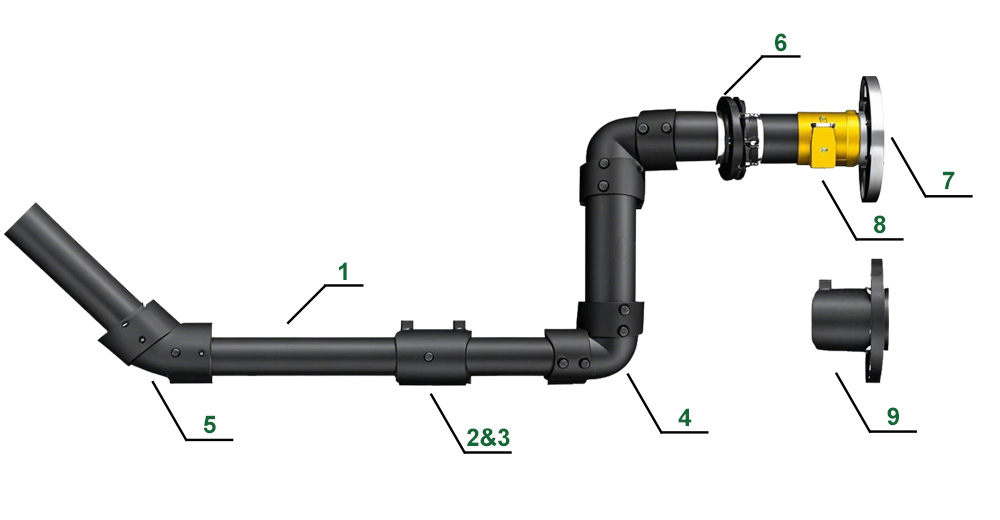

90 or 110mm Fuel Offloading Pipeline(Conductive)

Part No.	Products Description
1	Primary pipe,0.D.90mm or 110m
2	Primary welding socket
3	Conductive Plug-in
4	Primary 90° elbow
5	Primary 45° elbow
6	Entry Seal,for O.D.90mm pipeline
7	Separate threaded DIN flange 90mm,steel
8	Switched Copper Coupling 90*3NPT/BSPT/BSP
9	Welding termination fitting with flange

SINGLE WALL PIPE

Description
