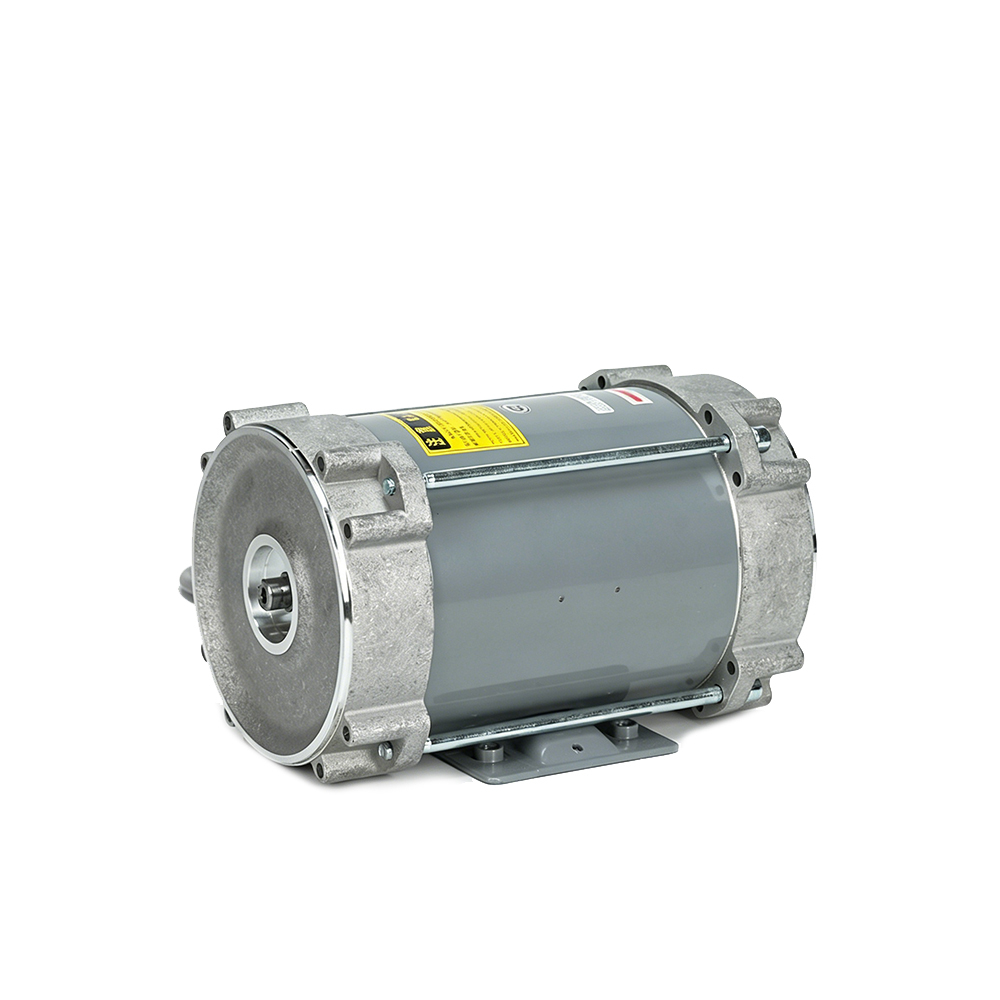

YBB7XX series single and three phase asynchronous inductive explosion proof motor is intended for use in potentially explosive atmosphere and supported to vapour recovery system. They adopted a totally enclosed structure and S1 working duty.

GET A QUOTE

Description

FEATURES AND BENEFITS

Suitable for use in explosive atmosphere of category 1 and 2, Class IIA and IIB, Temperature T1~T4
The applied protection method is flameproof with marking as: Ex db ⅡB T4 Gb
Working temperature: -40℃~55℃
Insulation: F class
Ingress Protection: IP55

ORDERING SPECIFICATION

MODEL	YBB702B	YBB702	YBB703B	YBB703
Output power	180W	370W	180W	370W
PH	3	3	1	1
Volt	380/400V	380/400V	220/230V	220/230V
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Current	0.45A	1.0A	1.20A	2.60/2.40A
RPM	2820/3420	2820/3420	2820/3420	2820/3420
