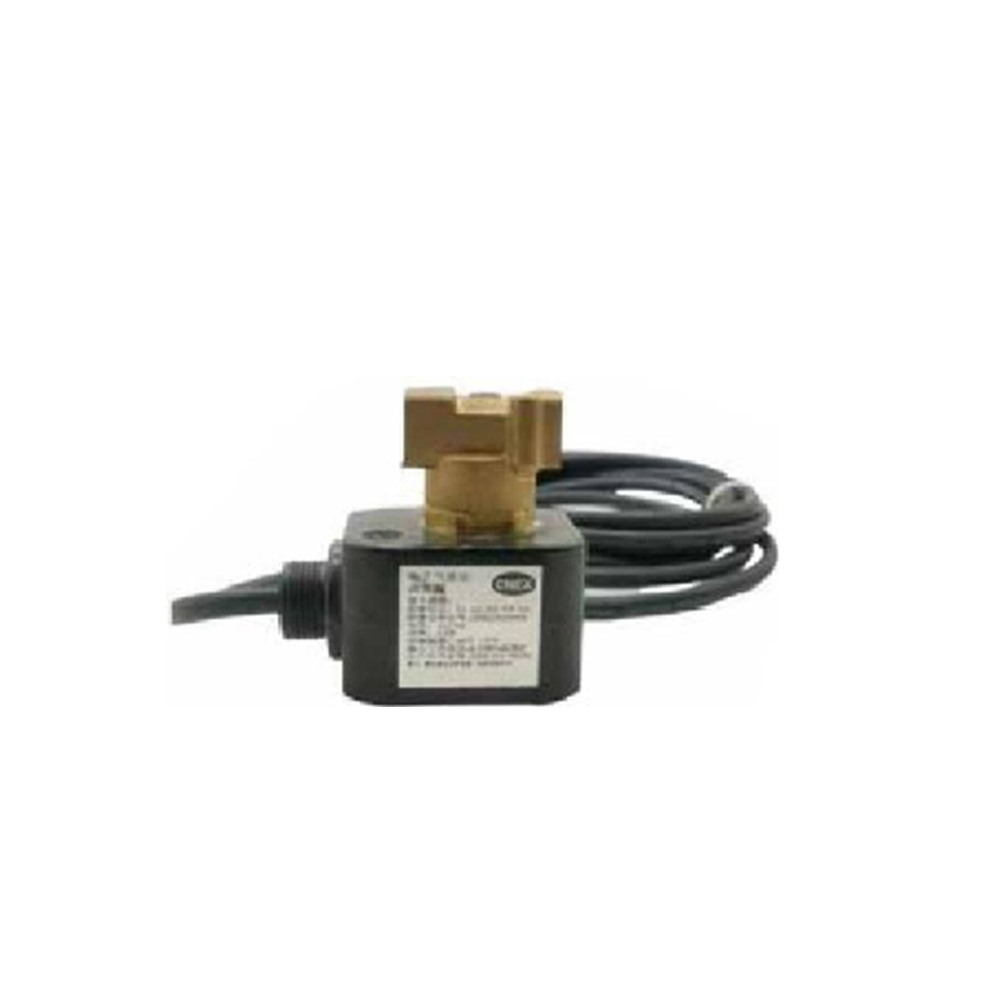

Vapor recovery proportional valve is used for electronic vapor recovery system of multiple vapor recovery system configurations. The valve delivered exceptional results against this benchmark for tests including: endurance, life-cycle, contamination, temperature extreme, and fuel compatibility. Recover the vapor automatically according to the fueling amount, save energy resources, reduce air pollution, increase the safety of fueling.
TECHNICAL DATA
- Model: DV1060Y（HP）
- Supply Voltage: 24VDC +/- 10%
- Rated Power: 8.2 W
- Resistance: 70Ω(1±8%), +20℃
- Inductance: 140-175mH, +20℃
- Thread Size: G1/4”
- Operating Ambient Temp: -40℃~55℃
- Anti-explosion marks: Ex mb IIC T3 Gb
FEATURES AND BENEFITS
- The A/Lratio is 0.95-1.05 (Default A/L ratio is 0.95-1.05)
- Capable of minutely adjusting the flow rate of the output fluid
- Different currents correspond to different proportions and change the gas-liquid ratio
