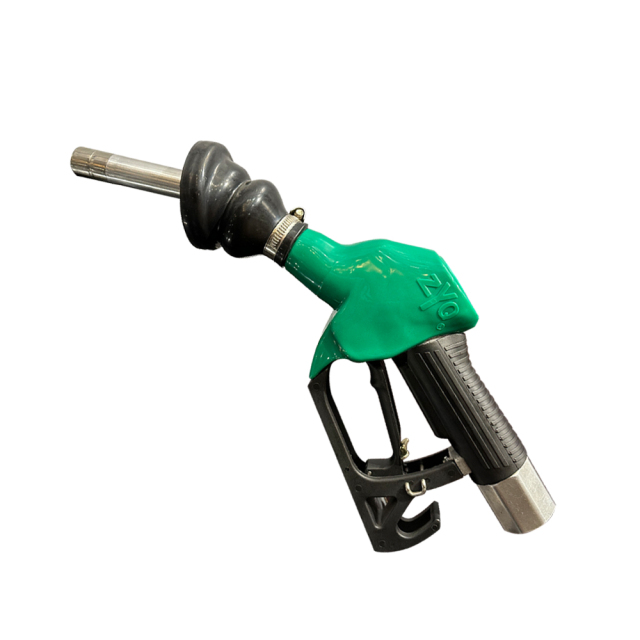

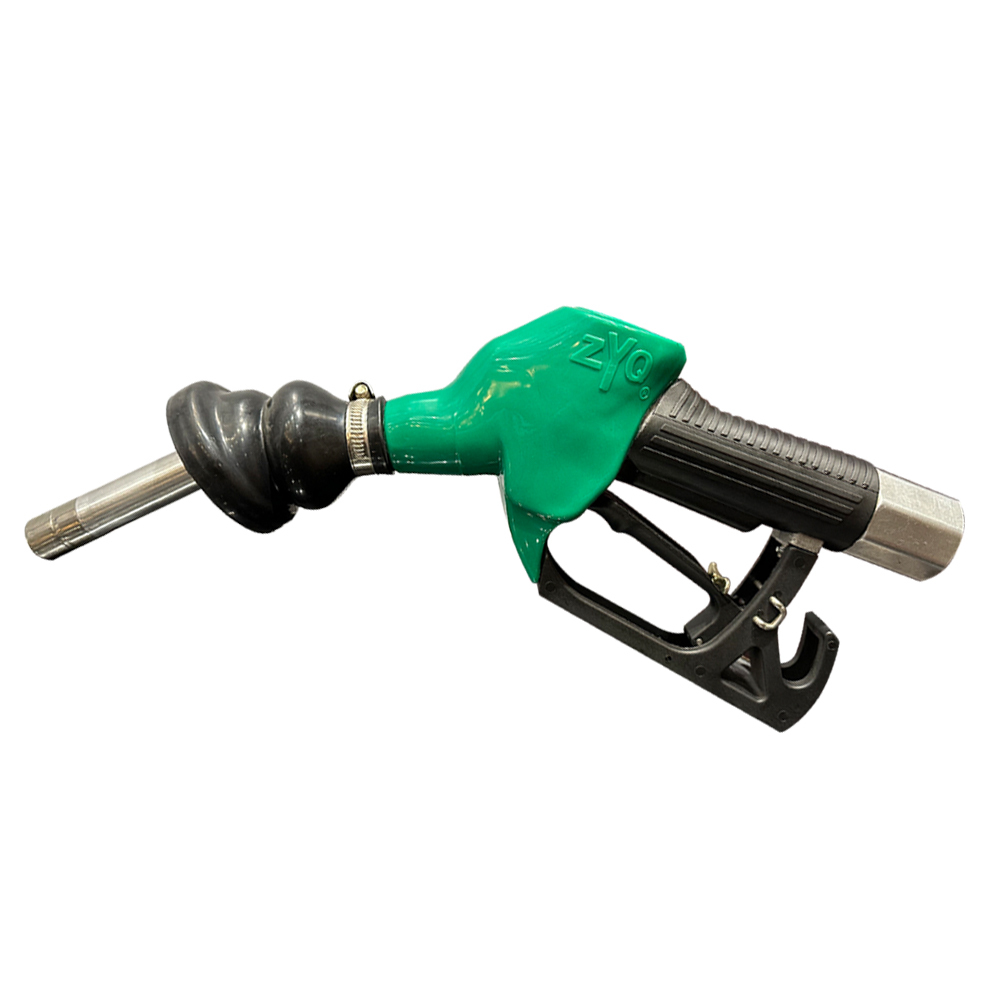

The nozzle incorporates an automatic shut-off function with an integrated safety cut-out, along with a two-stage lever latch featuring a removable pin. Its body is made of aluminum, while the spout includes a built-in vapor recovery inlet of aluminum and stainless steel construction. Connection to the hose side is via an M34×1.5 female thread, compatible with COAX swivels.
MATERIAL
- Body: Aluminum
- Hoseinlet: Aluminum
- Nozzle spout: Aluminum
- Diaphragm and seals: Lip seal, NBR O-rings, diaphragm of polyurethane
- Tips of nozzle spout: Stainless steel
- Guard: PVC
FEATURES AND BENEFITS
- 100% factory tested
- Flow rate: Max.45LPM
- Working pressure: 0.5 to 3.5 bar
- Working temperature: -25°C~55°C (LT-40°C~60°C)
- 2-speed lever latch with removable latch pin
ORDERING SPECIFICATION
| PART NUMBER |
HOSE INLET |
NOZZLE SPOUT |
GUARD STYLE |
| type |
inch |
mm |
number |
| HS100-3/21 |
M34*1.5 |
21 |
GUARD-HP 281.3 |
| HS100-3M/21 |
M34*1.5 |
21 |
GUARD-HP 281.3M |
| HS100-4/21 |
M34*1.5 |
21 |
GUARD-HP 281.4 |
| HS100-4M/21 |
M34*1.5 |
21 |
GUARD-HP 281.4M |
