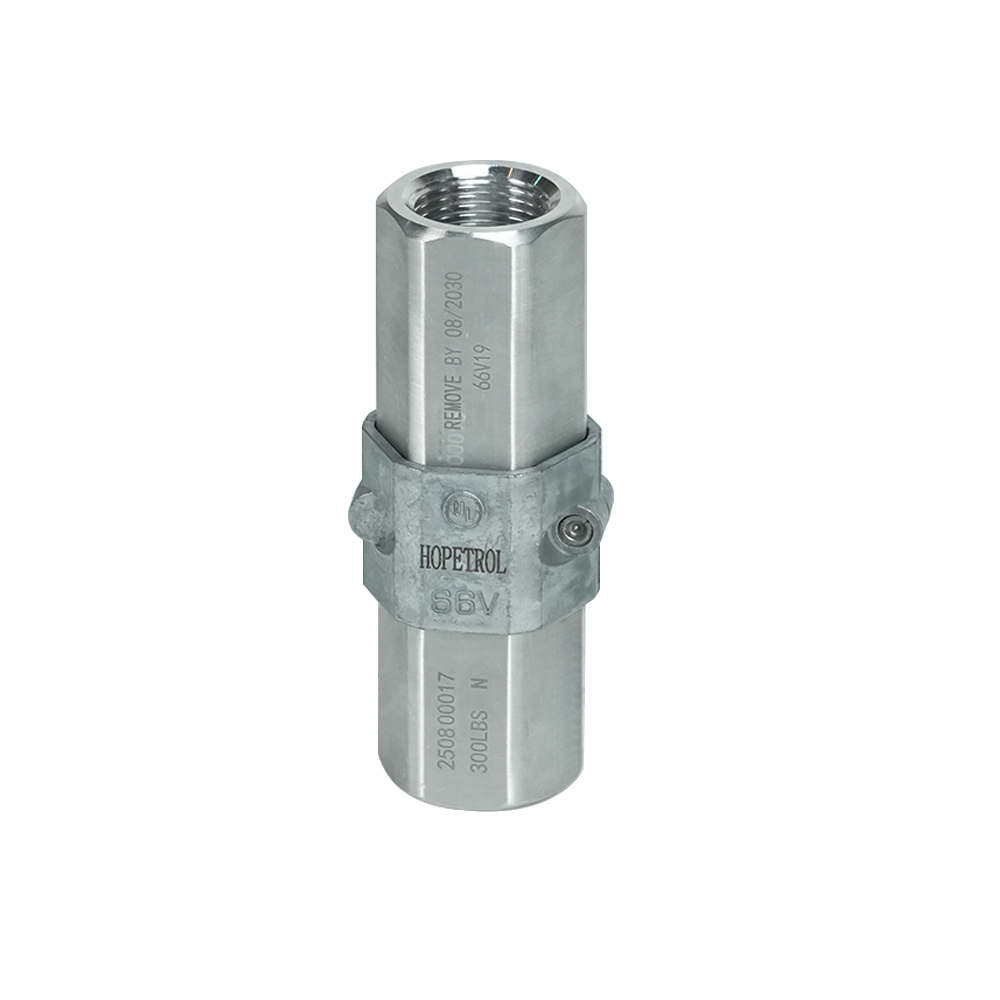

The HP-66VT Series breakaway is designed to be installed on fuel dispensing hoses and will separate with subject to a designed pull force, reducing expensive damage to the dispenser and piping system. Internal dual valves close automatically during separation, stopping the flow of fuel from both the dispenser and the separated hose, reducing environmental and health risks of potential fuel spills.
MATERIAL
- Body: Aluminum
- Seals: NBR
FEATURES AND BENEFITS
- UL and ULC listed for use in gasoline, diesel, and up to 85% ethanol blends.
- Prevents Costly Damage to Dispensers – pulls apart at less the designed pull force during drive-offs.
- Certainty of Operation – designed for single use, so you know it is replaced instead of re-assembled.
- Prevents Hazardous and Costly Clean Up – unique double poppet design closes leak path from both dispenser and separated hose side.
- 50 psi (3.45 bar) maximum pressure.
