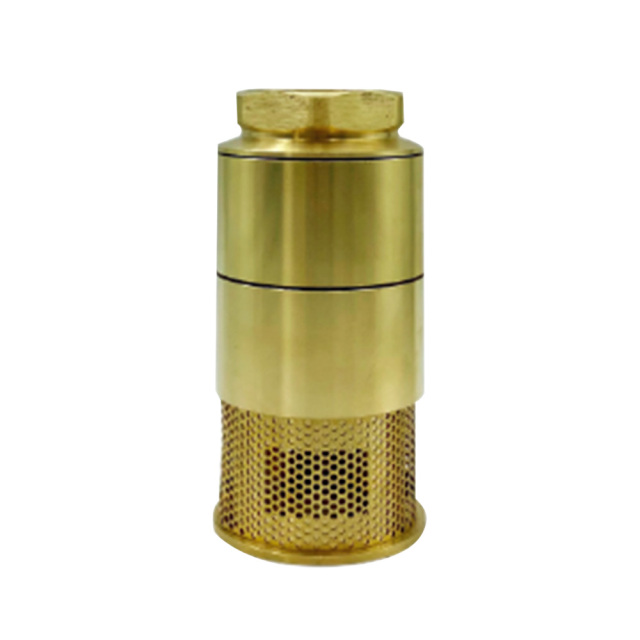

FOOT VALVE

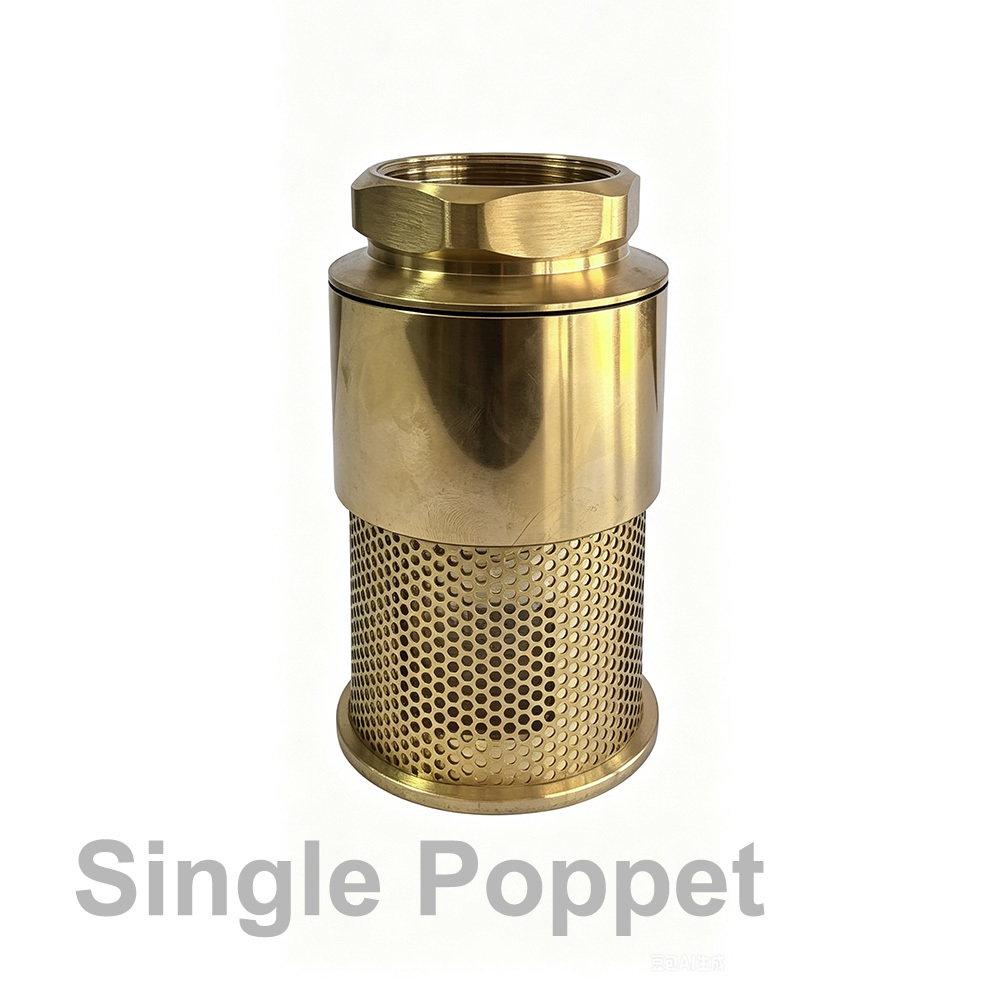

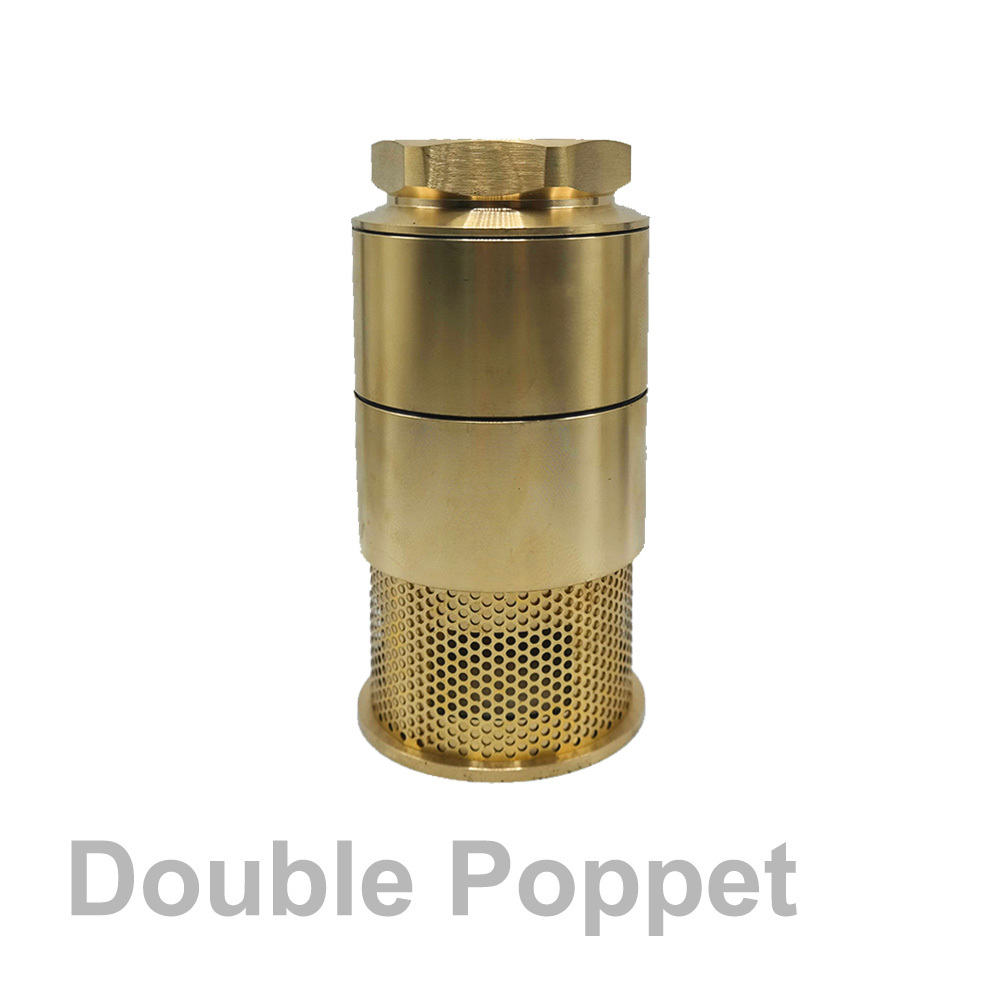

The HP-FV series foot valves (also named bottom valve) provide redundant protection for holding the prime, are ideal for installations where the valve is not easily installation. Suitable for use with gasoline, diesel and kerosene and many other none toxic acid free fluids. There are single poppet and double poppet types for choice.The whole valve is made of brass with an integrated bottom strainer.

Variations

Edit selections

PART NO.: FV-S1

FV-S1

FV-S1.25

FV-S1.5

FV-S2

FV-S2.5

FV-S3

FV-S4

FV-D1

FV-D1.25

FV-D1.5

FV-D2

FV-D2.5

FV-D3

FV-D4

THREAS: NPT

NPT

BSP

Select variations and quantity

PART NO.: FV-S1

FV-S1

FV-S1.25

FV-S1.5

FV-S2

FV-S2.5

FV-S3

FV-S4

FV-D1

FV-D1.25

FV-D1.5

FV-D2

FV-D2.5

FV-D3

FV-D4

THREAS: NPT

The min. inquiry quantity is 0. Add 0 more to continue.

NPT

BSP

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

MATERIALS

Body: Brass
Integrated bottom strainer: Brass
Seal: NBR

FEATURES AND BENIFITS

Valve Closing Speed: 0.5s
Working Temperature: -40°C-+55°C
For use on suction lines where the pressure does not exceed 34 feet of head (approximately 15 psi)
Pressure tested to ensure accuracy screen, protects the valve from debris
100% factory tested

ORDERING SPECIFICATIONS

Part No.	Size	Thread	Poppet Configuration
FV-S1	1" female	NPT/BSP	Single
FV-S1.25	1-1/4" female	NPT/BSP	Single
FV-S1.5	1-1/2" female	NPT/BSP	Single
FV-S2	2" female	NPT/BSP	Single
FV-S2.5	2-1/2" female	NPT/BSP	Single
FV-S3	3" female	NPT/BSP	Single
FV-S4	4" female	NPT/BSP	Single
FV-D1	1" female	NPT/BSP	Double
FV-D1.25	1-1/4" female	NPT/BSP	Double
FV-D1.5	1-1/2" female	NPT/BSP	Double
FV-D2	2" female	NPT/BSP	Double
FV-D2.5	2-1/2" female	NPT/BSP	Double
FV-D3	3" female	NPT/BSP	Double
FV-D4	4" female	NPT/BSP	Double
