Description

FEATURES AND BENEFITS

In order to ensure no leakage, the double-wall conductive petrol pipes have permeation barrier and secondary containment. It can ensure the safe use in a short period once the primary pipe leaked.
There's a larger gap between the primary pipe and the secondary containment pipe,it can ensure 24 hours monitoring.
Non-corroding, long service life,it's able to bear various chemical mediators, no electrochemical corrosion.
The pipeline has high safety, the burst pressure of pipeline exceeds 40 standard atmospheric pressure, ten times of working pressure.
Working temperature range from -40℃ to 50℃,with excellent capability. Corrosion resistant, especially in coastal areas, saline area,compared with steel pipeline, it has incomparable advantages.
Lightweight, convenient for transport and install, pipe installation costs is 50%lower than the steel pipe installation cost.

SIZE	PRODUCTS DESCRIPTION	COMMENT
125/110mm	4"Pipe 125/110mm,secondrary contained conductive	Outer pipe 125mm,primary pipe 110mm
75/63mm	2"Pipe 75/63mm,secondary contained conductive	Outer pipe 75mm,primary pipe 63mm

DOUBLE WALL FITTING AND PARTS
Double pipe connection can be finished at one time
All fittings are connected in order to ensure the monitoring of the whole pipeline
With special design on the structure of welding fittings,it can ensure no permeation in all piping system
Conductive plug-in ensures the continuity of piping system,makes it to be a continuous static conductive pipeline system

Reference picture	Products Description	size
	4"Double wall welding socket	125/110mm
	2"Double wall welding socket	75/63mm
	2"Double wall 90°welding elbow fiting	75/63mm
	2"Double wall welding Tee	75/63mm
	4"Double wallterminal welding socket, without rotating test report	125/110mm
	2"Double wallterminal welding socket, without rotating test report	75/63mm
	4"Double wallterminal welding socket, without rotating test report 2	125/110mm
	2"Double wall terminal welding socket, without rotating test report	75/63mm

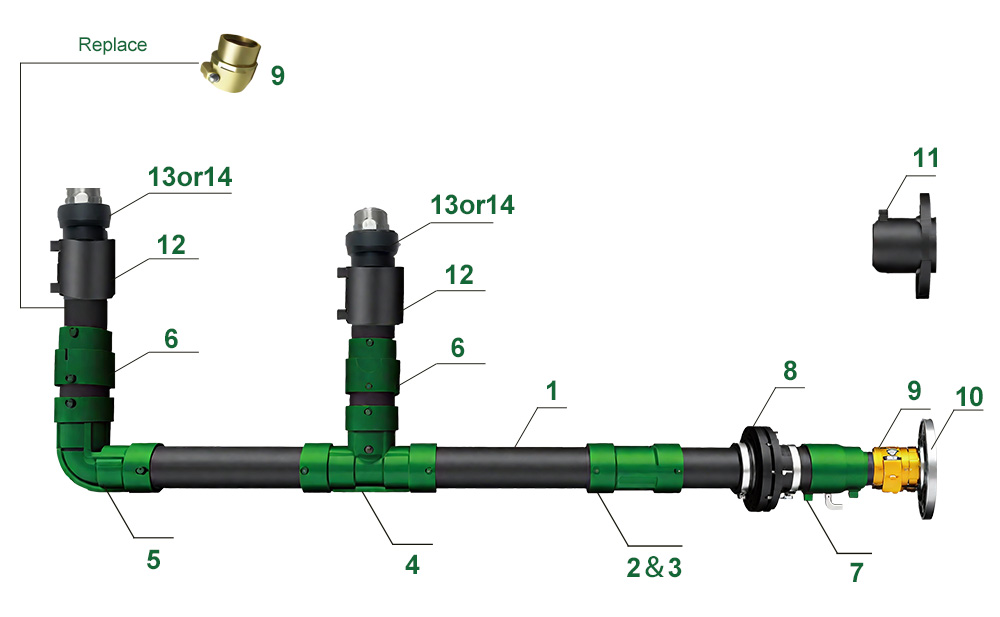

75/63 Fuel Delivery Pipeline(Conductive)

NO.	PRODUCTS DESCRIPTION

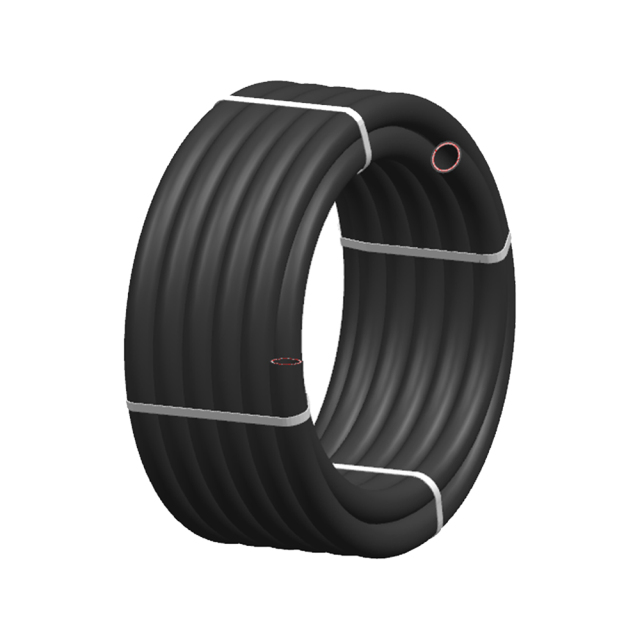

1	2"Double wall pipe O.D.75mm,75m/roll or 50m/roll,5.8m/pc
2	2"Double wallwelding socket
3	2"Conductive Plug-in
4	2"Double wallwelding tee
5	2"Double wall90°welding elbow
6	2"Double wall terminal welding socket,without rotating test report
7	2"Double wall terminal welding socket,with rotating test report
8	2"Double wallEntry Seal,for O.D.75/63mm pipeline
9	Switched Copper Coupling 63*2”NPT/BSPT/BSP
10	Separate threaded DIN flange 63 mm,steel
11	2"welding termination fiting with flange
12	2"primary welding socket
13	2"(pipe)*1A"NPT/BSPT/BSP male threaded termination fitting
13	2"(pipe)*2"NPT/BSPT/BSP male threaded termination fittng
14	2"(pipe)*1X"NPT/BSPT/BSP female threaded termination fitting
14	2"(pipe)*2"NPT/BSPT/BSP female threaded termination fitting

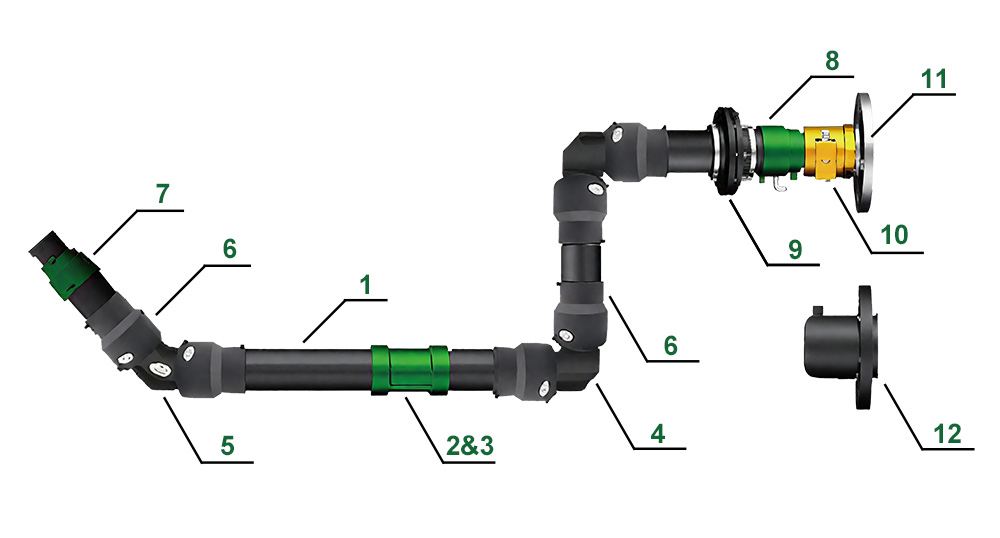

125/110 Fuel Offloading Pipeline (Conductive)

NO.	PRODUCTS DESCRIPTION
1	4"Double wall pipe O.D.125mm,5.8m/pc
2	4"Double wall welding socket
3	4"Conductive Plug-in
4	4"Double wall90°welding elbow
5	4"Double wall 45°welding elbow
6	4"Reducer,used for 5*4
7	4"Double wall terminal welding socket,without rotating test report
8	4"Double wallterminal welding socket,with rotating test report
9	4"Double wall Entry Seal,for O.D.125/110mm pipeline
10	Swithched Copper Coupling 110*4"NPT/BSPT/BSP
11	Separate threaded DIN flange 110mm,steel
12	4"Welding termination fitting with flange

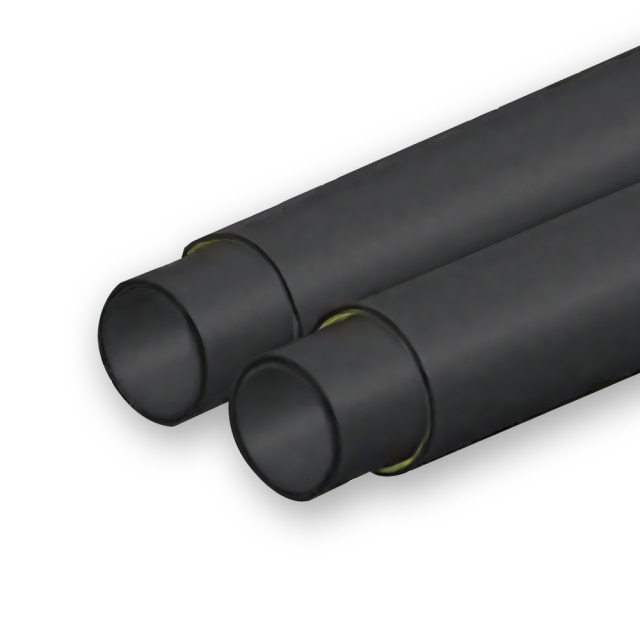

DOUBLE-WALL CONTAINMENT PIPE
