Hopetrol UL Crimp Couplings are engineered to connect fuel hoses to fuel nozzles or other related equipment. Featuring 360° free rotational movement, this product are UL330 certified.

Variations

Edit selections

CONNECTION MODE: MALE CRIMPING

MALE CRIMPING

HOSE SIZE: 16*27

16*27

19*28.5

25*37

THREAD: NPT

NPT

BSP

BSPT

THREAD SIZE: 3/4"

3/4"

STRUCTURE: FIXED

FIXED

SWIVEL

VISION: UL TYPE

UL TYPE

Select variations and quantity

CONNECTION MODE: MALE CRIMPING

MALE CRIMPING

HOSE SIZE: 16*27

16*27

19*28.5

25*37

THREAD: NPT

NPT

BSP

BSPT

THREAD SIZE: 3/4"

3/4"

STRUCTURE: FIXED

FIXED

SWIVEL

VISION: UL TYPE

The min. inquiry quantity is 0. Add 0 more to continue.

UL TYPE

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

MATERIAL

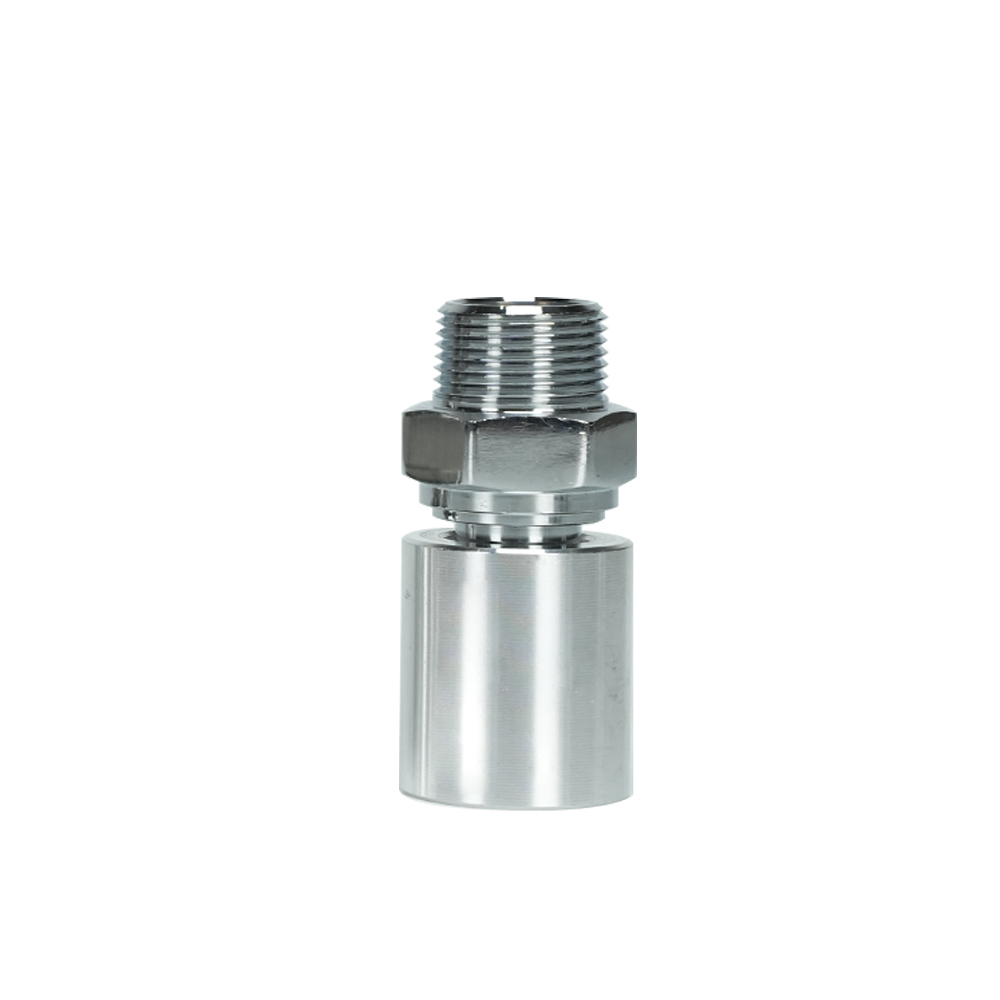

Fixed type mandrel: Zinc alloy & Chrome plated

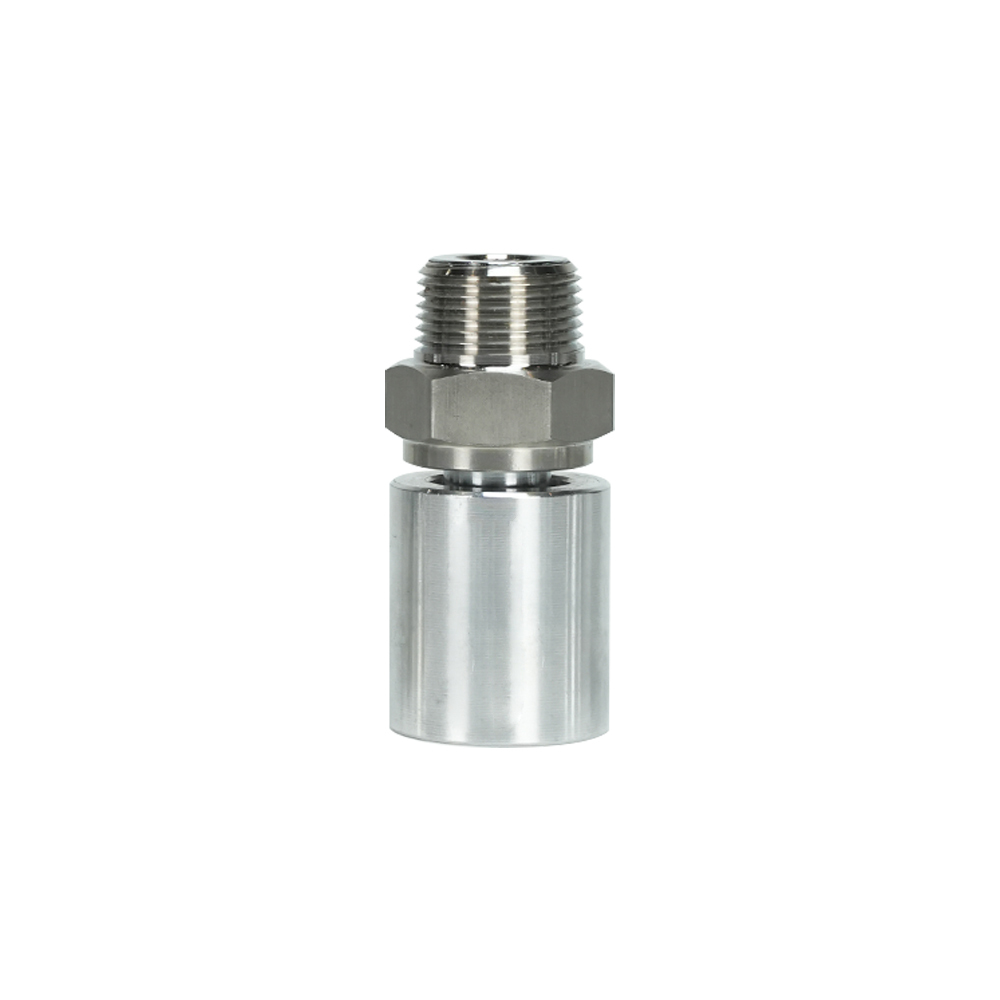

Swivel type mandrel: Brass & Chrome plated
Ferrule: Aluminum
Swivel type nut: Stainless steel & Chrome plated
Seal: NBR/FPM

FEATURES AND BENEFITS

Specially designed for crimp connection between fuel hoses and fuel nozzles or other matching equipment, dedicated for fuel dispenser hose assemblies.
Fully certified to UL330 standard, complying with safety specification.
Available in various sizes and materials to fit different hose diameters and thread standards.

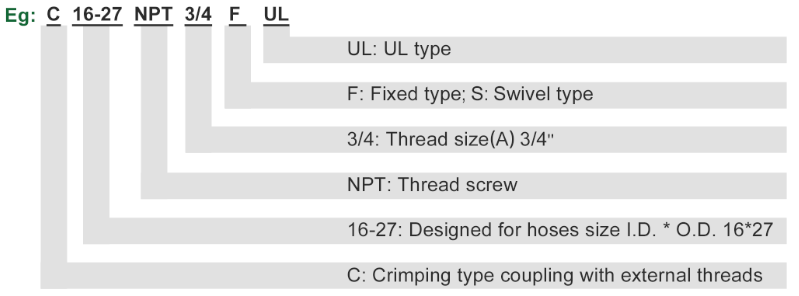

ORDERING SPECIFICATION

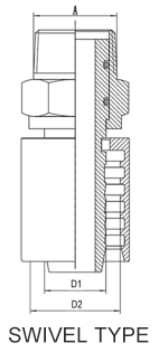

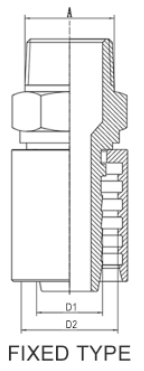

ITEM NO.	NOMINAL SIZE	D1	D2	THREAD SIZE （A）	THREAD SCREW	HOSE SIZE I.D* O.D.	SWIVEL WEIGHT	FIXED WEIGHT
ITEM NO.	inch	mm	mm	inch	THREAD SCREW	mm	kg	kg
C16-27 UL	5/8"	16.8	27.5	3/4"	NPT/BSP/BSPT (O-ring is optional)	16*27	0.11	0.11
C19-28.5 UL	3/4"	19.8	29.2	3/4"		19*28.5	0.15	0.15
C25-37 UL	1"	25.5	37.8	1"		25*37	0.27	0.27
