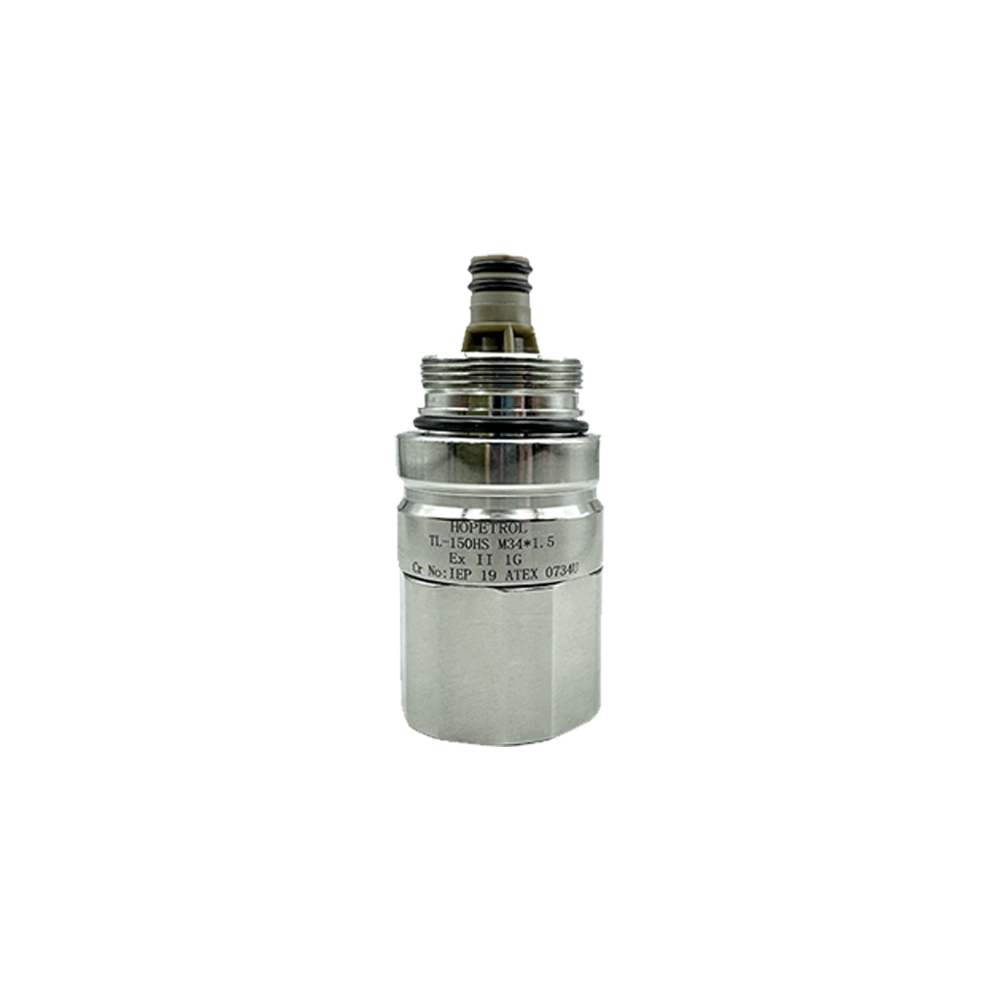

Self-sealing break-away coupling is for assembly between vapour recovery nozzle and COAX hose. Separates at axial or angular pull-off forces from 800N(80kg) up to 1500N(150kg). All parts 100% factory tested. The break sleeve helps protect the break-away part in the event of a drive-off.
MATERIAL
- Body: Aluminum
- Inner parts: Fuel resistance plastic and stainless steel.
- Seal: NBR & FKM
FEATURES AND BENEFITS
- UL and ULC listed for use in gasoline, diesel, and up to 85% ethanol blends.
- Thread type: M34×1.5mm
- Temperature range: -25°C~60°C
- Breaking force: 800~1500N
- Max working pressure: 0.3MPa
- Resistance: <10⁹ Ω
- 1 year warranty
ORDERING SPECIFICATION
| PART NUMBER |
DIMMENS |
THREAD |
WEIGHT APPROX |
| type |
D(mm) |
L(mm） |
inch |
kg |
| TL-150HS |
41 |
92 |
M34*1.5(Male and Female both) |
0.14 |
