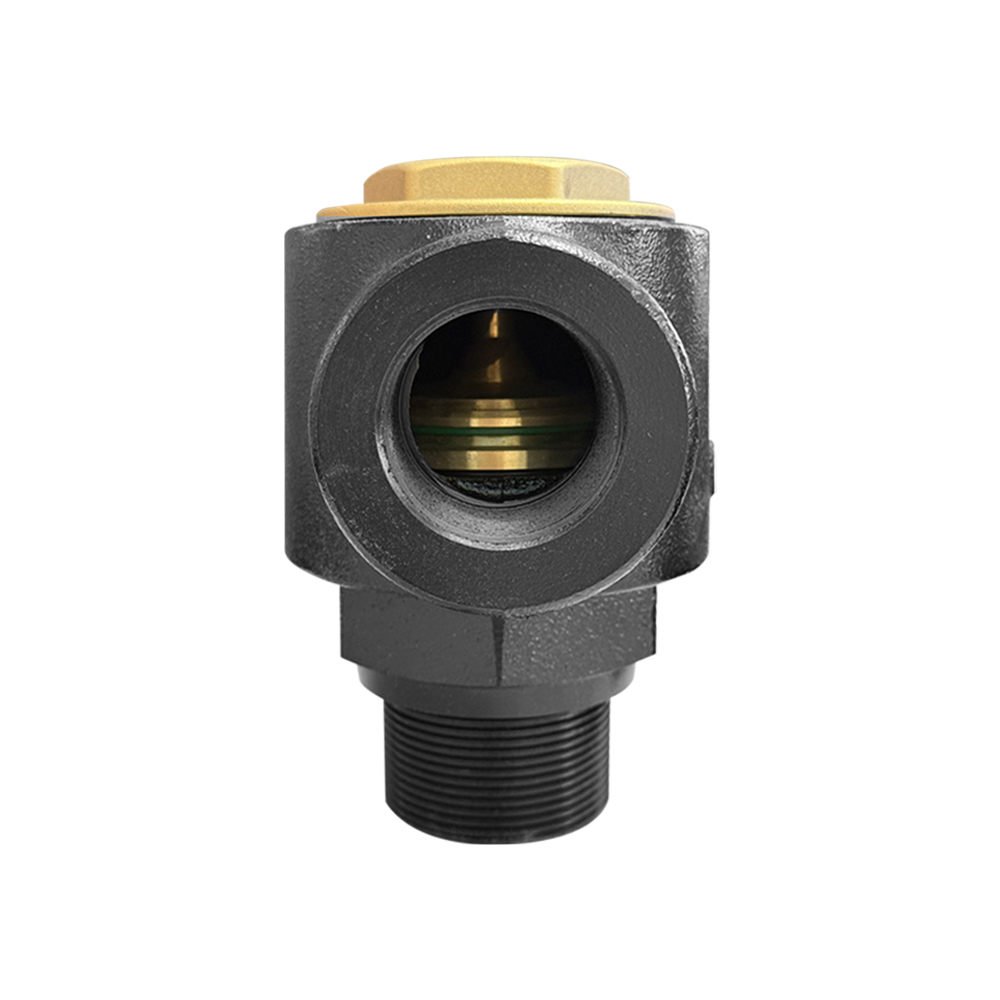

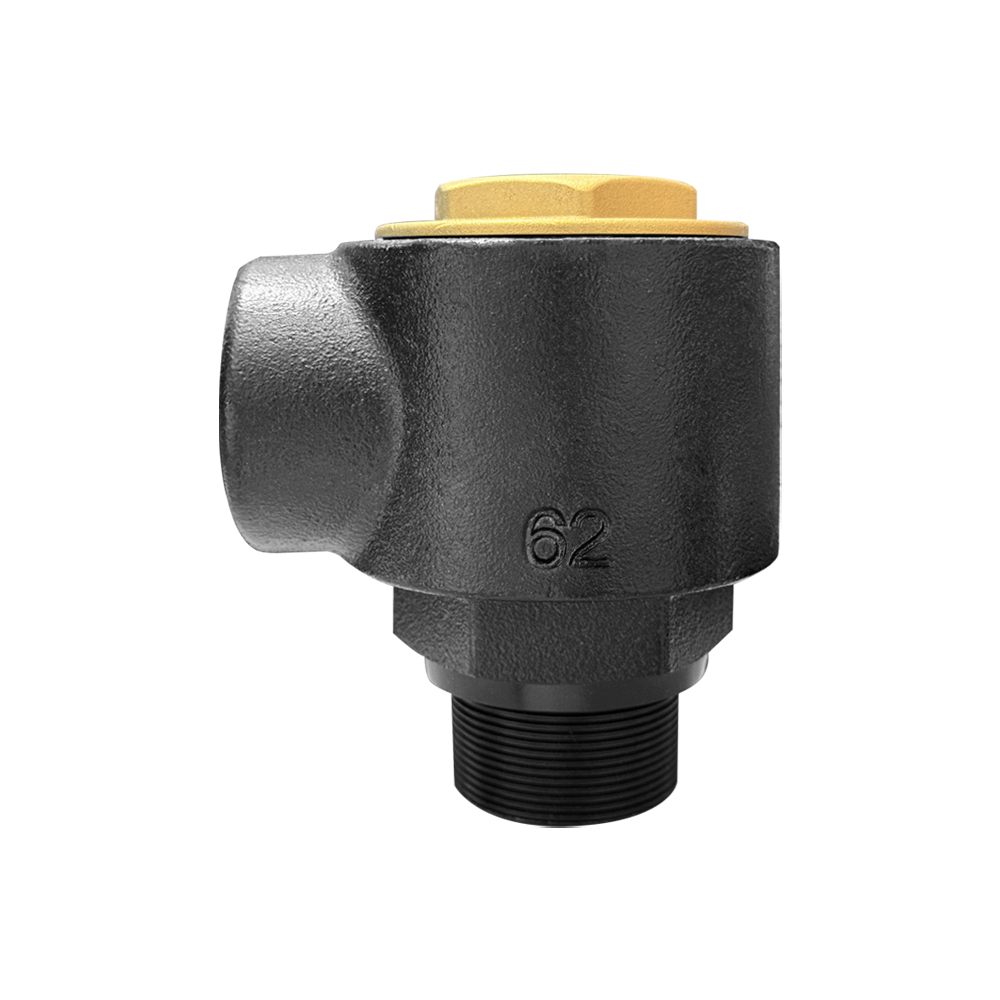

This kind of new type angle check valve is designed to prevent the drainage of fuel (loss of prime) in the suction line and permits its flow only towards dispenser.This valve is installed on the manhole lid of the underground storage tank.

Variations

Edit selections

Part No.: HP 62-40-50

HP 62-40-50

Select variations and quantity

Part No.: HP 62-40-50

The min. inquiry quantity is 0. Add 0 more to continue.

HP 62-40-50

Subtotal

GET A QUOTE

Add to Quote List View Quote List

Download

View all downloads

MATERIALS

Body: Cast Iron
Cap Material: Brass
O-ring Seal: NBR
Poppet: Brass
Painted: Black

SPECIFICATION

	Working temperature: -20°C~+ 60°C

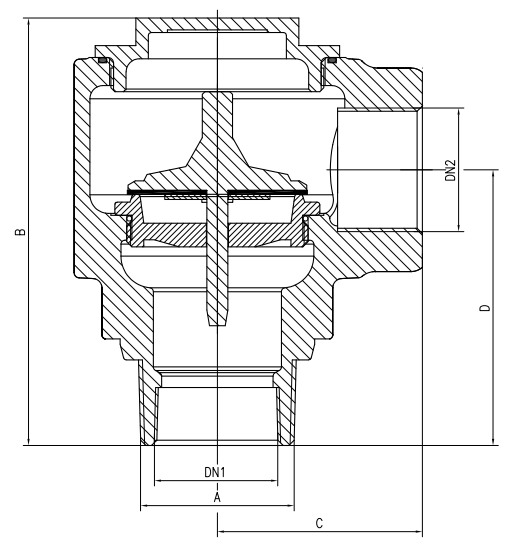

	DN1: 1-1/2” BSPT FEMALE
	DN2: 1-1/2” BSPP FEMALE
	A: 2” BSPT MALE
	B: 162.5mm
	C: 78mm
	D: 104.8mm

FEATURES AND BENIFITS

90-degree angle design fits limited space on tank manhole for right-angle pipe connection.
Cast iron body is compression-resistant and durable against humid underground fuel vapor environment.
Stable one-way sealing keeps pipeline prime pressure steadily, eliminating repeated air bleeding and improving fuel supply efficiency.
Suitable for traditional fuel without additives.

MAINTENANCE

Periodically check the device is necessary to remove possible dirty.
Always replace the product after fire or deflagration.
In case of tampering warranty expires and safety protection is not guaranteed.
