125/110 SECONDARY CONDUCTIVE

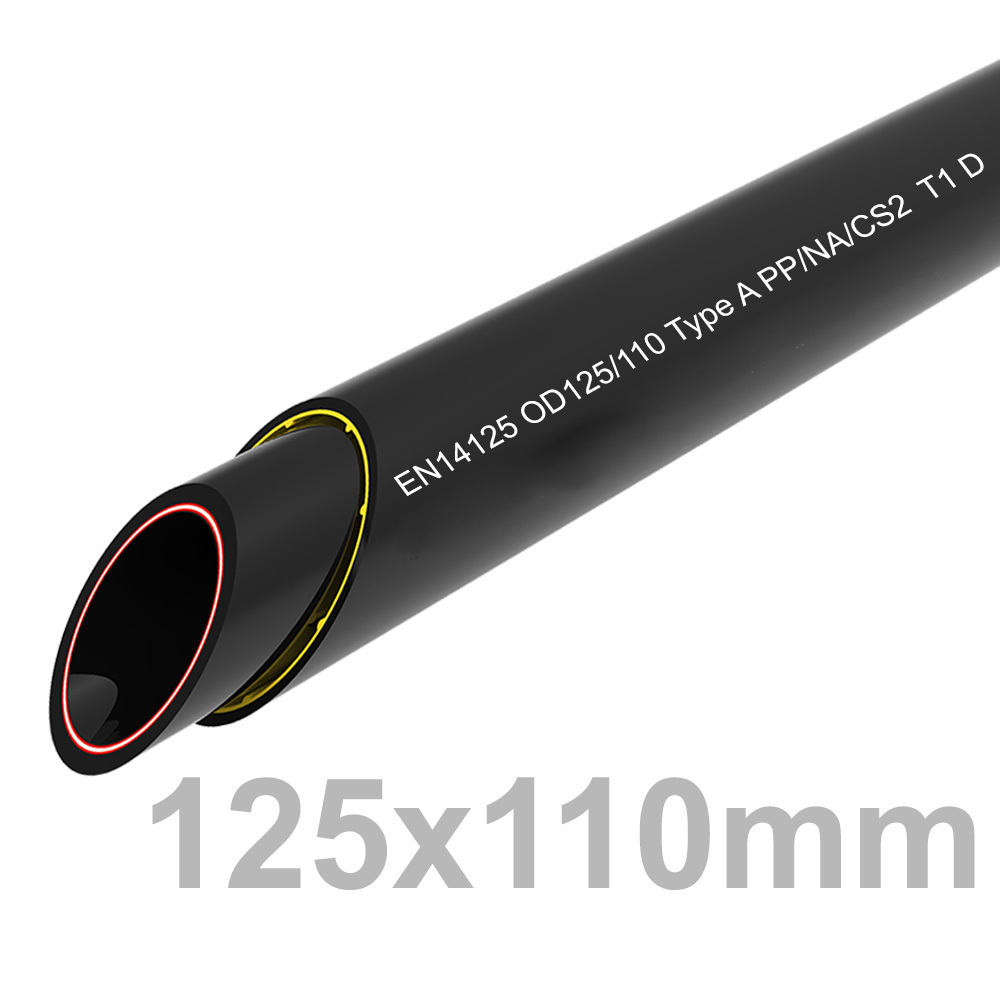

As the main pipe for oil transportation, our Double-Layer Conductive Pipeline has three mainstream sizes: 125mm outer pipe with 110mm inner pipe, 75mm outer pipe with 63mm inner pipe, and 65mm outer pipe with 54mm inner pipe. The double-layer structure enhances anti-leakage performance. Equipped with complete matching fittings, it supports convenient pipeline maintenance and buried installation, being the optimal choice for underground main pipelines of gas stations.
Download
View all downloads
  • 125/110 Secondary Contained,Hopetrol,54mm Primary

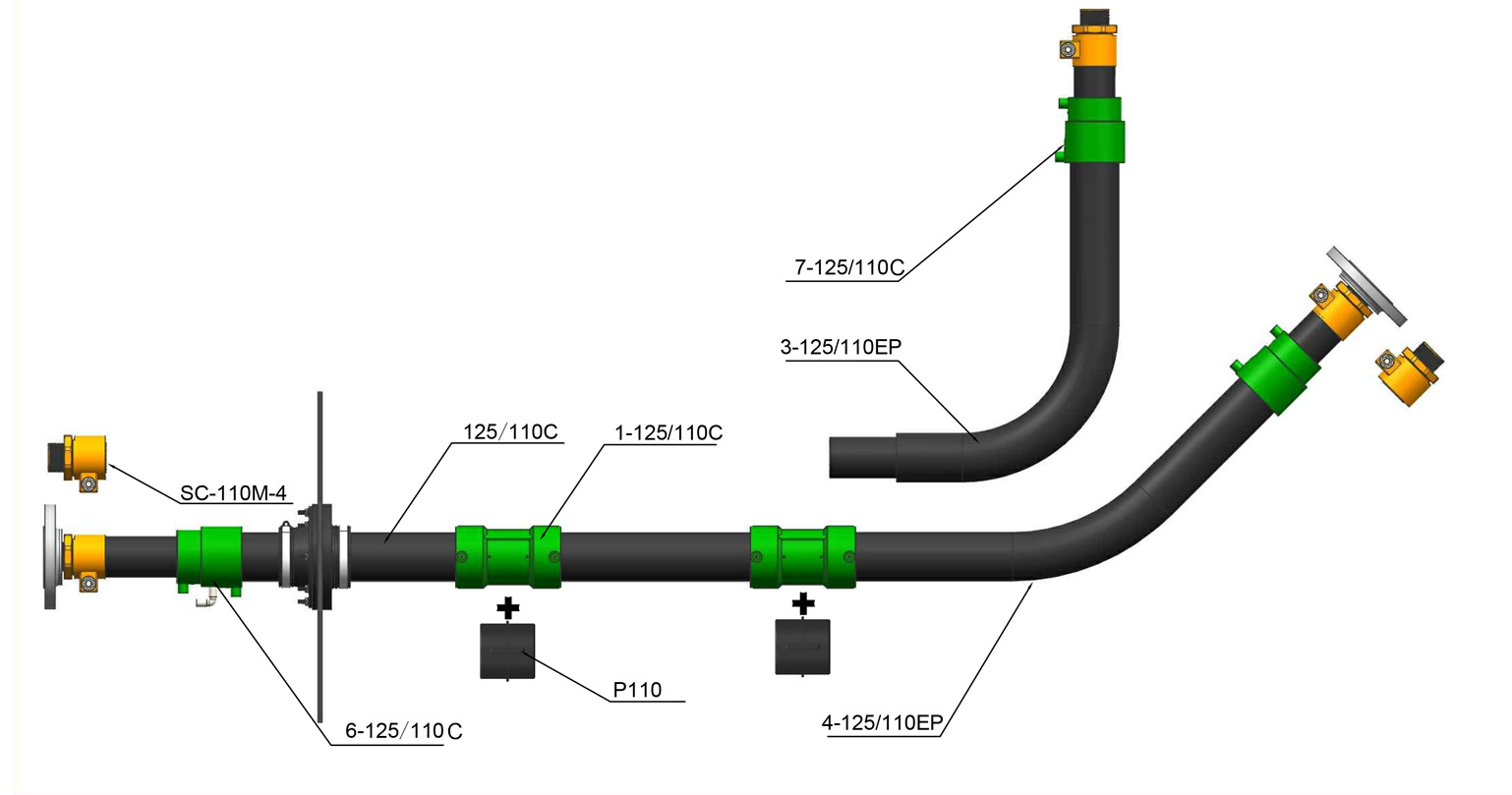

ORDER INFO


Article No.

Description

125/110C

4" Double wall pipe O.D. 125mm, 5.8m/pc

1-125/110C

4" Double wall welding socket

P110

4" Conductive Plug-in

3-125/110EP

4" Double wall 90 ° Plain Elbow

4-125/110EP

4" Double wall 45 ° Plain Elbow

6-125/110C

4" Double wall terminal welding socket, with rotating test report

7-125/110C

4" Double wall terminal welding socket, without rotating test report

E125

4" Double wall Entry Seal, for O.D. 125/110mm pipeline

SC-110M-4

Switched Copper Coupling 110*4" NPT/BSPT/BSP

FL110-4

Separate threaded DIN flange 110 mm*4", steel
