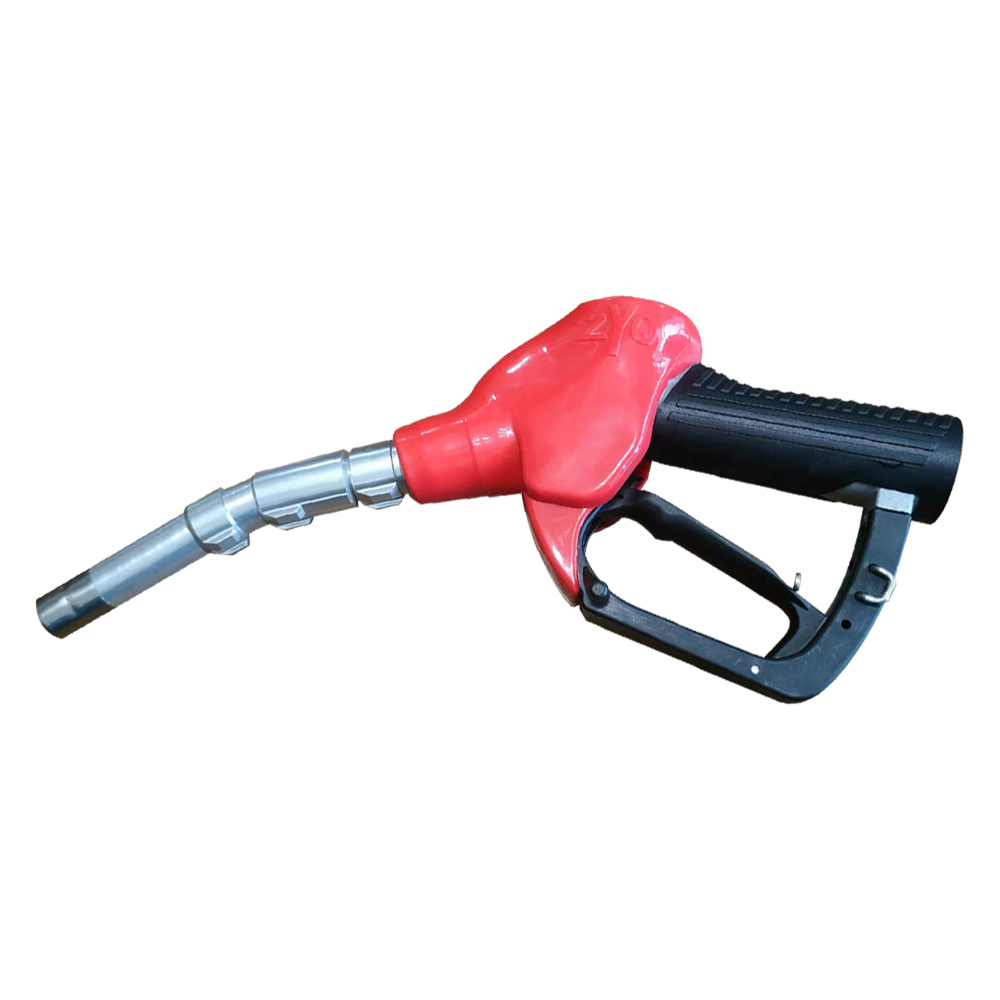

NOZZLE ZYQ75

The HP-ZYQ75 automatic nozzles are suitable for gasoline ( also with ethanol content up to E85), diesel, fuel oil, biodiesel. Not suitable for viscous oils.
Variations
Edit selections
COLOR: GREEN
GREEN
RED
BLACK
BLUE
YELLOW
GREY
THREAD: M34*1.5
M34*1.5
CERTIFICATION: ATEX
ATEX
GUARD STYLE: GUARD-HP 281.3
GUARD-HP 281.3
GUARD-HP 281.3M
GUARD-HP 281.4
GUARD-HP 281.4M
SPOUT: 21mm
21mm
25mm
Select variations and quantity
COLOR: GREEN
GREEN
RED
BLACK
BLUE
YELLOW
GREY
THREAD: M34*1.5
M34*1.5
CERTIFICATION: ATEX
ATEX
GUARD STYLE: GUARD-HP 281.3
GUARD-HP 281.3
GUARD-HP 281.3M
GUARD-HP 281.4
GUARD-HP 281.4M
SPOUT: 21mm
The min. inquiry quantity is 0. Add 0 more to continue.
21mm
-
25mm
-
Subtotal
-
Download
View all downloads
  • ZYQ75,Hopetrol,ZYQ75

Featuring automatic shut-off function with safety cutout valve and built-in check valve.The gun body has a special design concept, with the
advantages of small size, neat, light weight. The HP-ZYQ75 nozzle complies with the EN13012 standard, meeting all requirements for safety
and weights and measures.Connection to the hose side is via an M34×1.5 female thread, compatible with swivel-axial coupling.

MATERIAL

  • Body: Aluminum
  • Spout: Aluminum
  • Tips of nozzle spout: Stainless steel
  • Lever & Lever Guard: Composite plastic
  • Cover(Hand-warmer): PVC
  • Inlet size: M34*1.5
  • Seal part: NBR

FEATURES AND BENEFITS

  • Flow range: 60LPM.
  • Working temperature: -25°C~55°C(LT -40°C~60°C)
  • Working pressure range: 0.5bar(7psi)~3.45 bar(50psi)
  • 100% factory tested.
  • 2-speed lever latch with removable latch pin.
