65/54 SECONDARY CONDUCTIVE

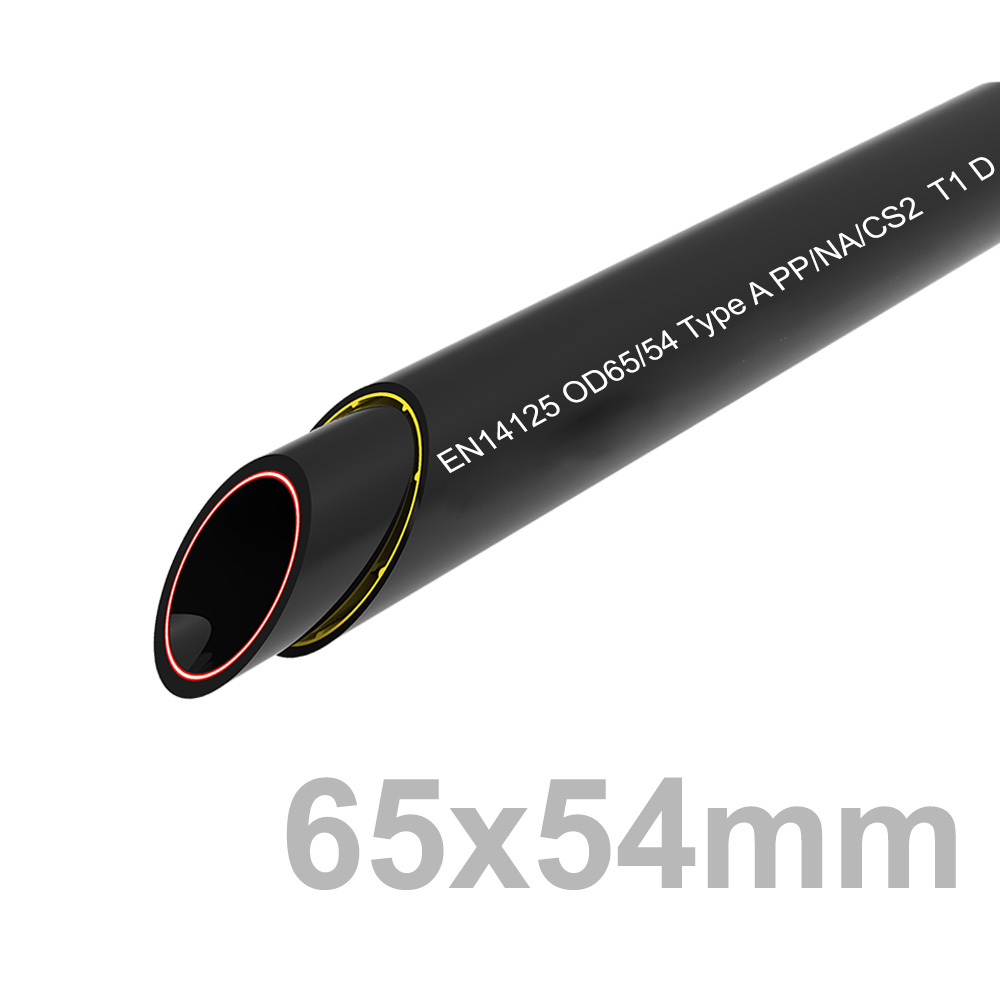

As the main pipe for oil transportation, our Double-Layer Conductive Pipeline has three mainstream sizes: 125mm outer pipe with 110mm inner pipe, 75mm outer pipe with 63mm inner pipe, and 65mm outer pipe with 54mm inner pipe. The double-layer structure enhances anti-leakage performance. Equipped with complete matching fittings, it supports convenient pipeline maintenance and buried installation, being the optimal choice for underground main pipelines of gas stations.
Download
View all downloads
  • 65/54 Secondary Contained,Hopetrol,65/54 Secondary Contained

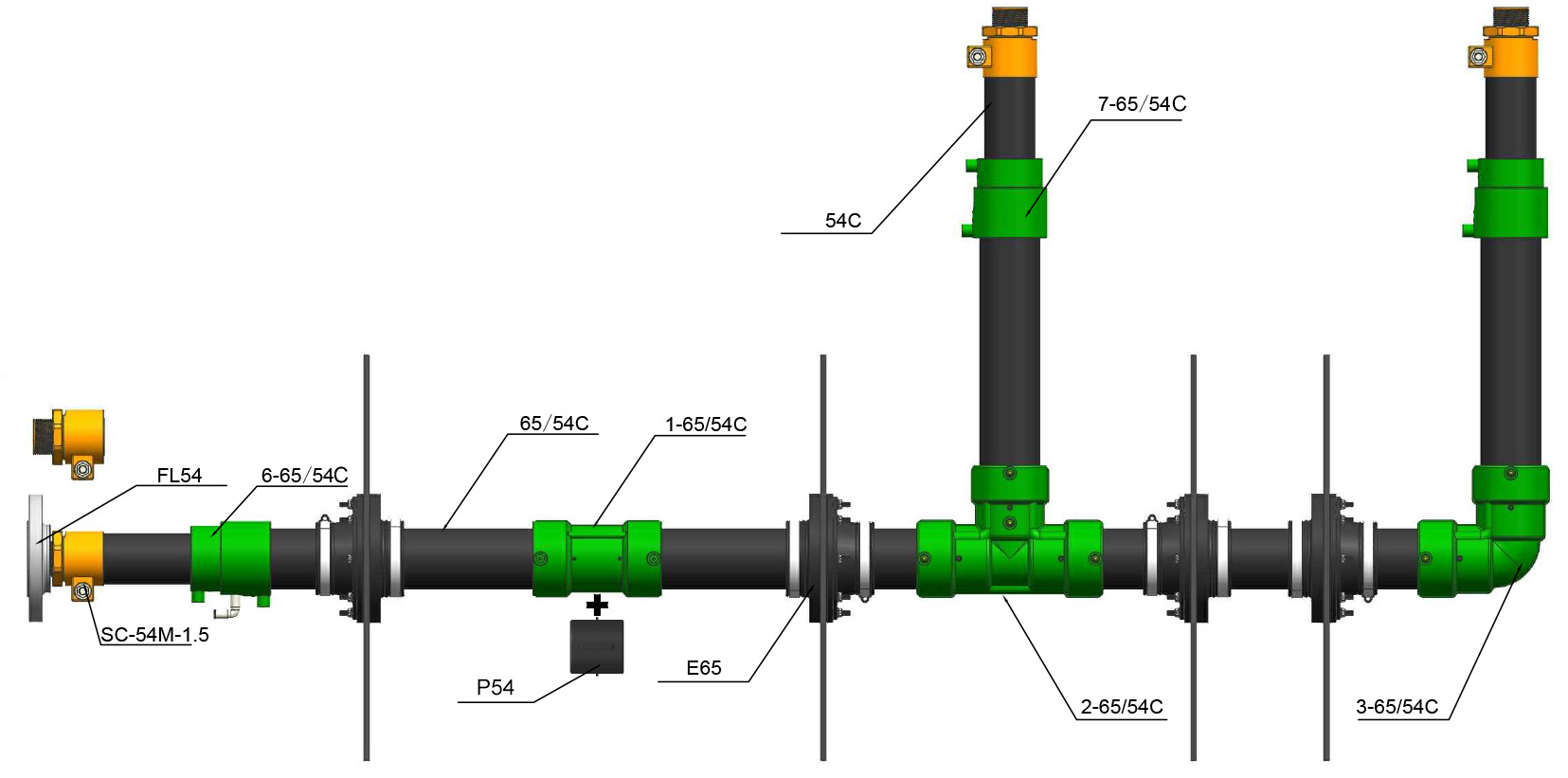

ORDER INFO



Article No.

Description

65/54C

1.5" Double wall pipe O.D. 65mm, 75m/roll

1-65/54C

1.5" Double wall welding socket

P54

1.5" Conductive Plug-in

2-65/54C

1.5" Double wall welding tee

3-65/54C

1.5" Double wall 90 ° welding elbow fitting

6-65/54C

1.5" Double wall terminal welding socket, with rotating test report

7-65/54C

1.5" Double wall terminal welding socket, without rotating test report

E65

2" Double wall Entry Seal, for O.D. 65/54mm pipeline

SC-54M-1.5

Switched Copper Coupling 54*1½" NPT/BSPT/BSP

FL54-1.5

Separate threaded DIN flange 54 mm*1½", steel
