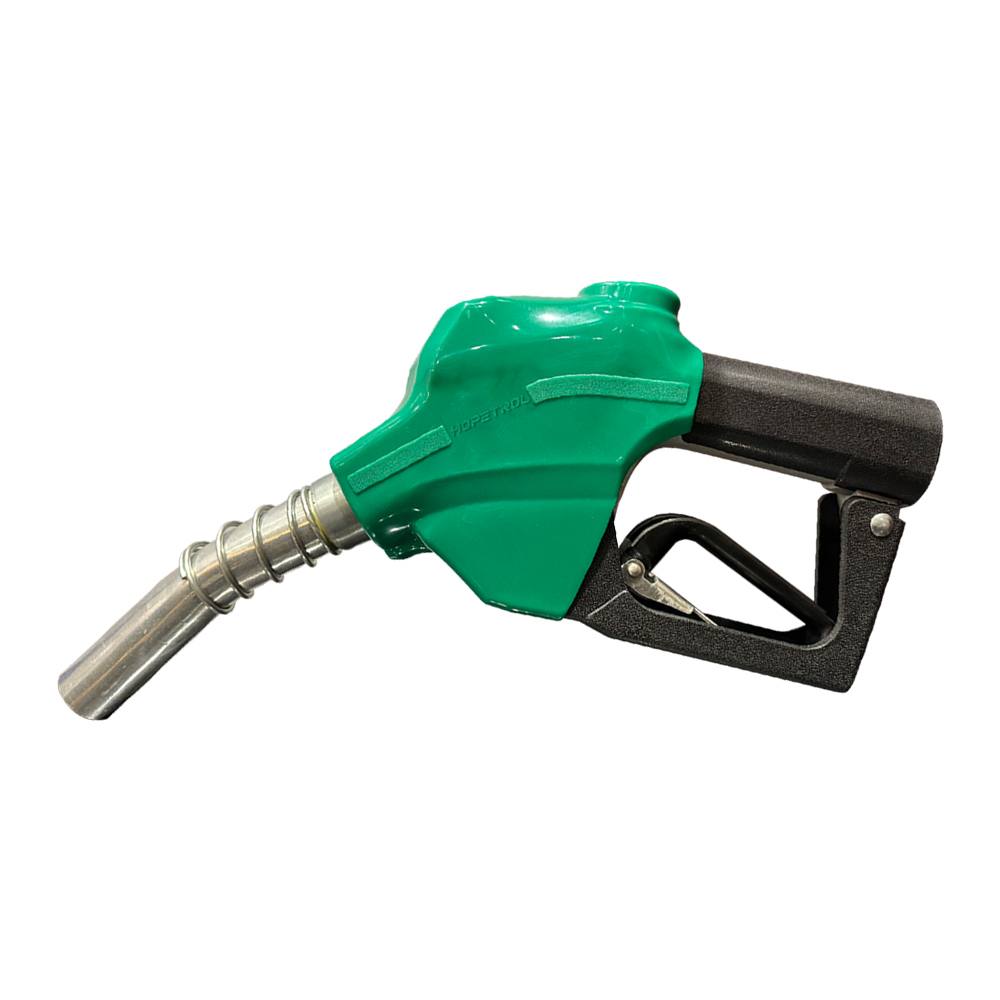

Featuring a Dural lever guard with an impact-resistant structure, the nozzle has been verified by simulated extreme drop tests: 10 consecutive
drops from 1.2 meters onto concrete, and still maintains full functionality of core components such as the valve body and operating lever. This
robust design reliably protects against accidental impacts and drops in demanding environments, ensuring long-term, stable operation while
significantly reducing maintenance and replacement costs.
MATERIAL
- Spout: Aluminum
- Body: Aluminum
- Lever & Lever Guard: Composite plastic
- Cover(Hand-warmer): PVC
- Inlet size: 1" NPT/BSP/BSPT
- Seal part: NBR, Viton
FEATURES AND BENEFITS
- Flow range: 90LPM.
- Working temperature: -30℃~60℃.
- Working pressure range: 0.5bar(7psi)~3.45 bar(50psi).
- 100% factory tested.
- Selective casting process of body.
- Smooth closing action and reduced line shock.
- Hold-open rack is available for full service's applications.
- Easily to replace nozzle spout, only need to remove screws.
- Lab cycle-tested and proven to last longer than 1 million cycles.
- UL and ULc-Listed for use in gasoline, diesel, and up to 10% ethanol blends.
- Full hand insulator protects both nozzle and vehicle, and insulates user's hands.
- Prevents spills in pre-pay or card-lock systems - No Pressure, No Flow Device.
- Prevents consumer from jamming the nozzle in an open position - blocker on the lever guard.
- The nozzles shut off when falling out of a vehicle and is tipped up, limiting spillage and unsafe conditions.
- The nozzle will not open until the pumping system is pressurized, and closes automatically when the pressure is removed.
