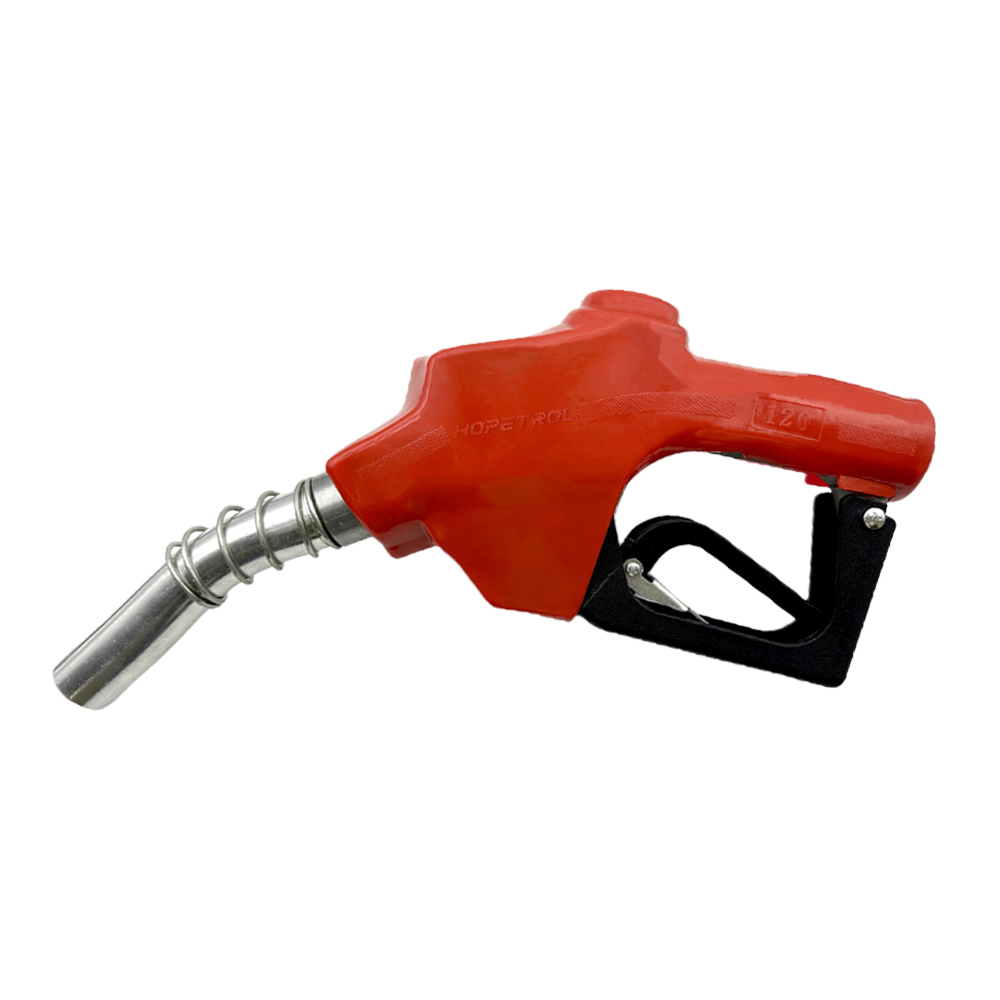

The HP-120A automatic nozzles are designed for heavy-duty, high-flow truck, bus and fleet service. It has the advantages of low cost, long service life, and durability. HP-120A large flow refueling nozzle can help you improve efficiency and increase sales. Featuring a Dural lever guard with an impact-resistant structure, the nozzle has been verified by simulated extreme drop tests: 10 consecutive drops from 1.2 meters onto concrete, and still maintains full functionality of core components such as the valve body and operating lever. This robust design reliably protects against accidental impacts and drops in demanding environments, ensuring long-term, stable operation while significantly reducing maintenance and replacement costs.
MATERIAL
- Spout: Aluminum
- Body: Aluminum Lever & Lever
- Guard: Composite plastic
- Cover(Hand-warmer): PVC
- Inlet size: 1" NPT/BSP/BSPT
- Seal part: NBR, Viton
FEATURES AND BENEFITS
- Flow range: 90LPM.
- Working temperature: -30℃~60℃.
- Working pressure range: 0.5bar(7psi)~3.45 bar(50psi).
- 100% factory tested.
- Selective casting process of body.
- Hold-open rack is available for full service's applications.
- Easily to replace nozzle spout, only need to remove screws.
- Lab cycle-tested and proven to last longer than 1 million cycles.
- UL and ULc-Listed for use in gasoline, diesel, and up to 10% ethanol blends.
- Full hand insulator protects both nozzle and vehicle, and insulates user's hands.
- The nozzles shut off when falling out of a vehicle and is tipped up, limiting spillage and unsafe conditions.
